Construction & Building•Geomembrane

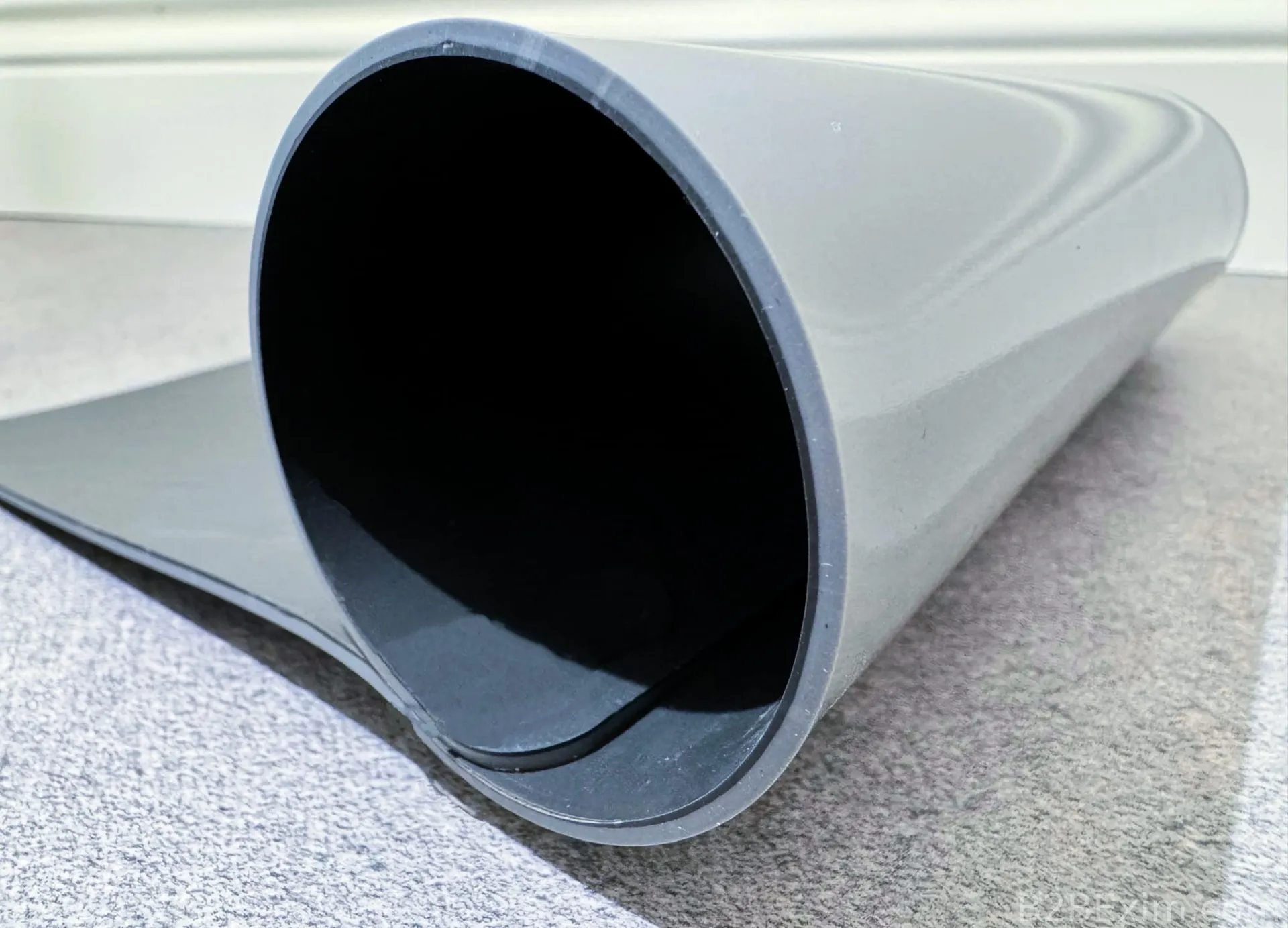

PVC Geomembrane
PVC geomembrane is a flexible and durable lining material used in projects requiring waterproofing and impermeability. It provides a reliable barrier solution for various infrastructure, water storage, and containment applications. Its flexible structure ensures ease of installation, and it can also be manufactured in dual-color options to help identify surface damage more readily. With its protective, reinforcing, and insulating properties, it is the preferred choice across a wide range of field conditions. Contact us for this product or any similar inquiries.
Technical Specifications
| Roll Weight | ±143 kg |
| Package Type | PVC 2000 |
| Product Type | PVC Geomembrane |
| Raw Material | Polyvinyl Chloride (PVC) |
| Peel Resistance | 560 N/50 mm |
| Roll Dimensions | 2.10 x 25 m = 52.5 m² |
| Tear Resistance | 100 N/mm |
| Shear Resistance | 800 N/50 mm |
| Tensile Strength | 15 N/mm² |

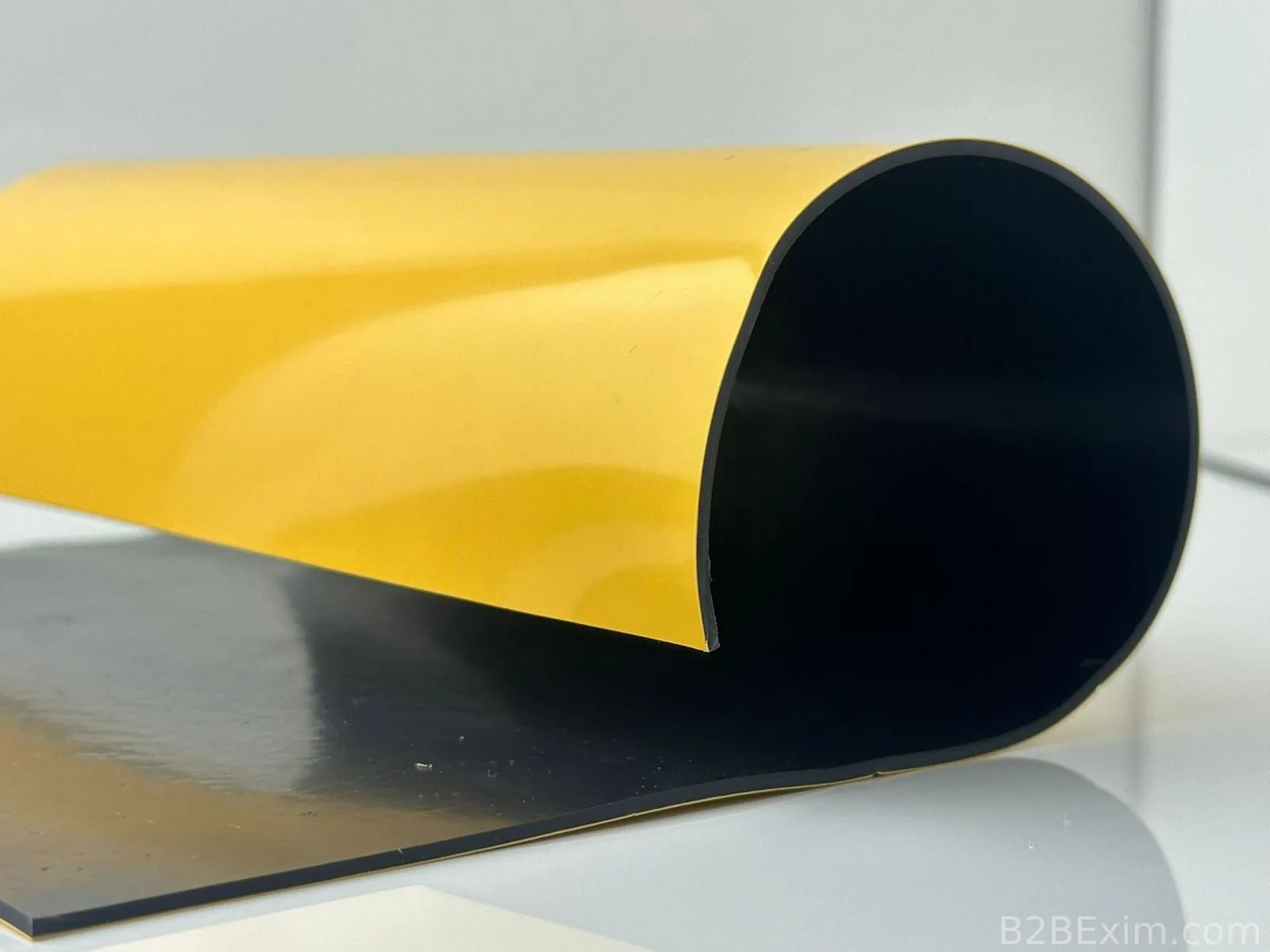

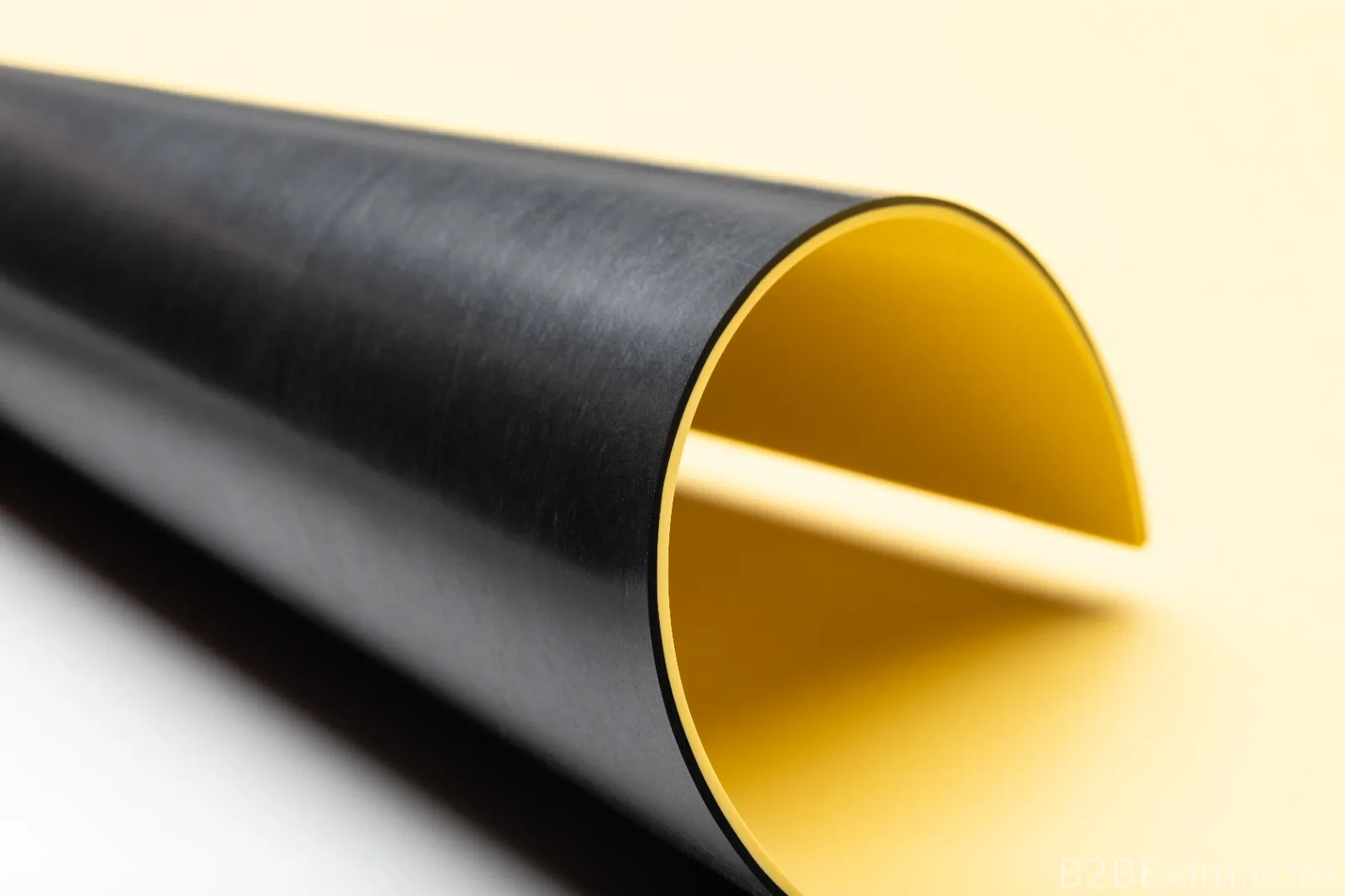

| Dual Color Option | Can be manufactured with light / dark color layered production |
| Thickness Options | 1.00 mm, 1.20 mm, 1.50 mm, 2.00 mm |
| Mass per Unit Area | 2660 g/m² |
| Water Permeability | 4x10⁻⁶ m/m²·day |
| Elongation at Break | 250% |
| Fire Classification | Class E |
| Reference Thickness | 2.00 mm |
| Thickness Tolerance | -5% |
| Oxidation Resistance | <25% |
| Static Puncture Resistance | 2000 N |
| Durability Thickness Tolerance | ±10% |
| Artificial Aging Temperature Range | -40°C / +50°C |
Quotes are provided for bulk purchases and export requests.
