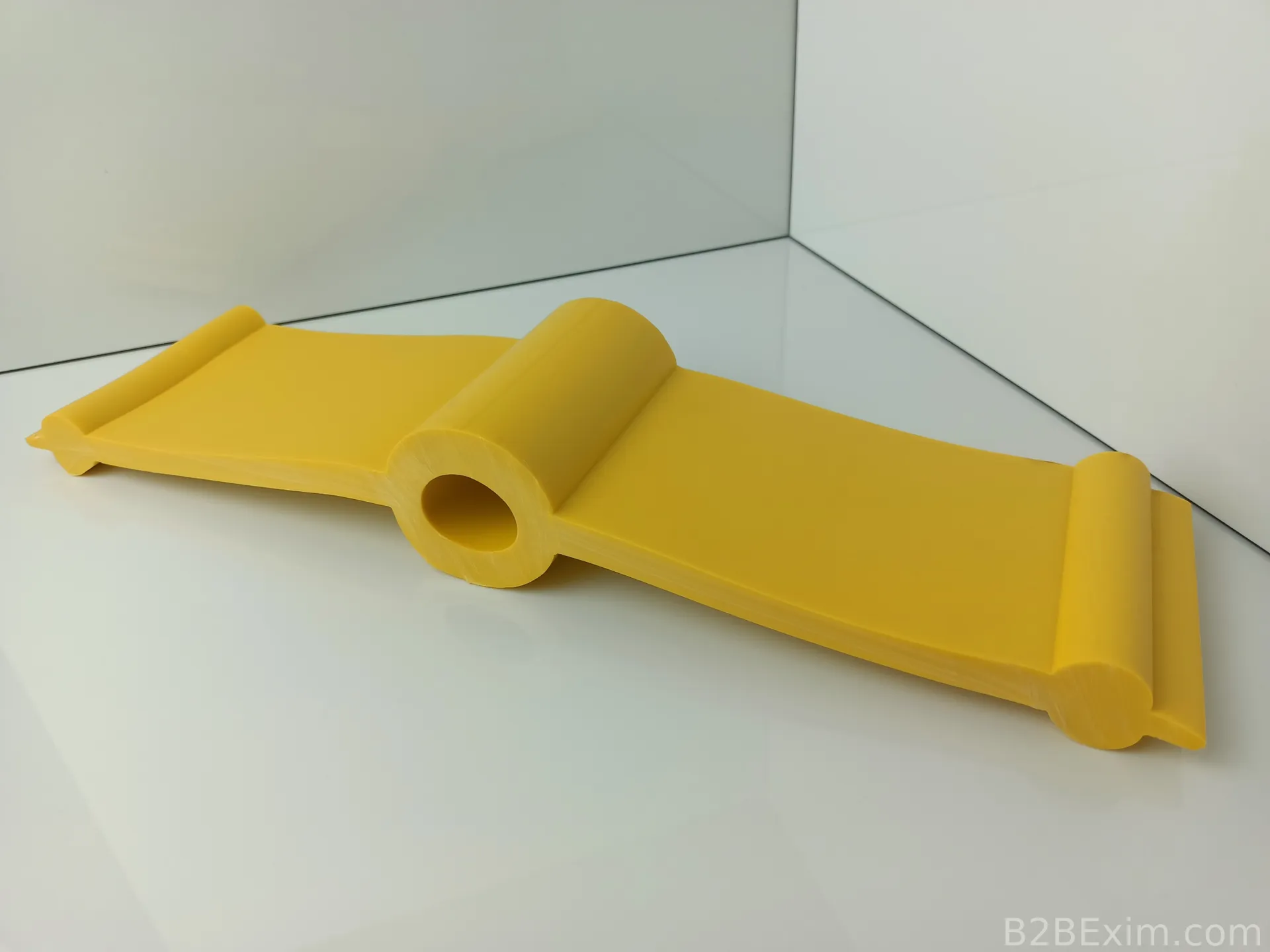

PVC Waterstop Strip
PVC waterstop strip is a specialized waterproofing element used in reinforced concrete structures to provide watertightness at expansion, contraction, and construction joints. It forms a secure barrier between concrete sections poured at different times, helping to protect the structure against water ingress. It offers an effective solution at joint zones in tunnels, foundations, retaining walls, water tanks, treatment facilities, channels, and similar structures. This product, which contributes to maintaining structural integrity, is the preferred choice for long-lasting protection against water, moisture, mud, and similar external factors. Contact us for inquiries related to this product or similar requirements.
Technical Specifications
| Density | 1.27 g/cm³ ±0.04 |
| Product type | PVC waterstop strip |
| Raw material | Polyvinyl chloride (PVC) |

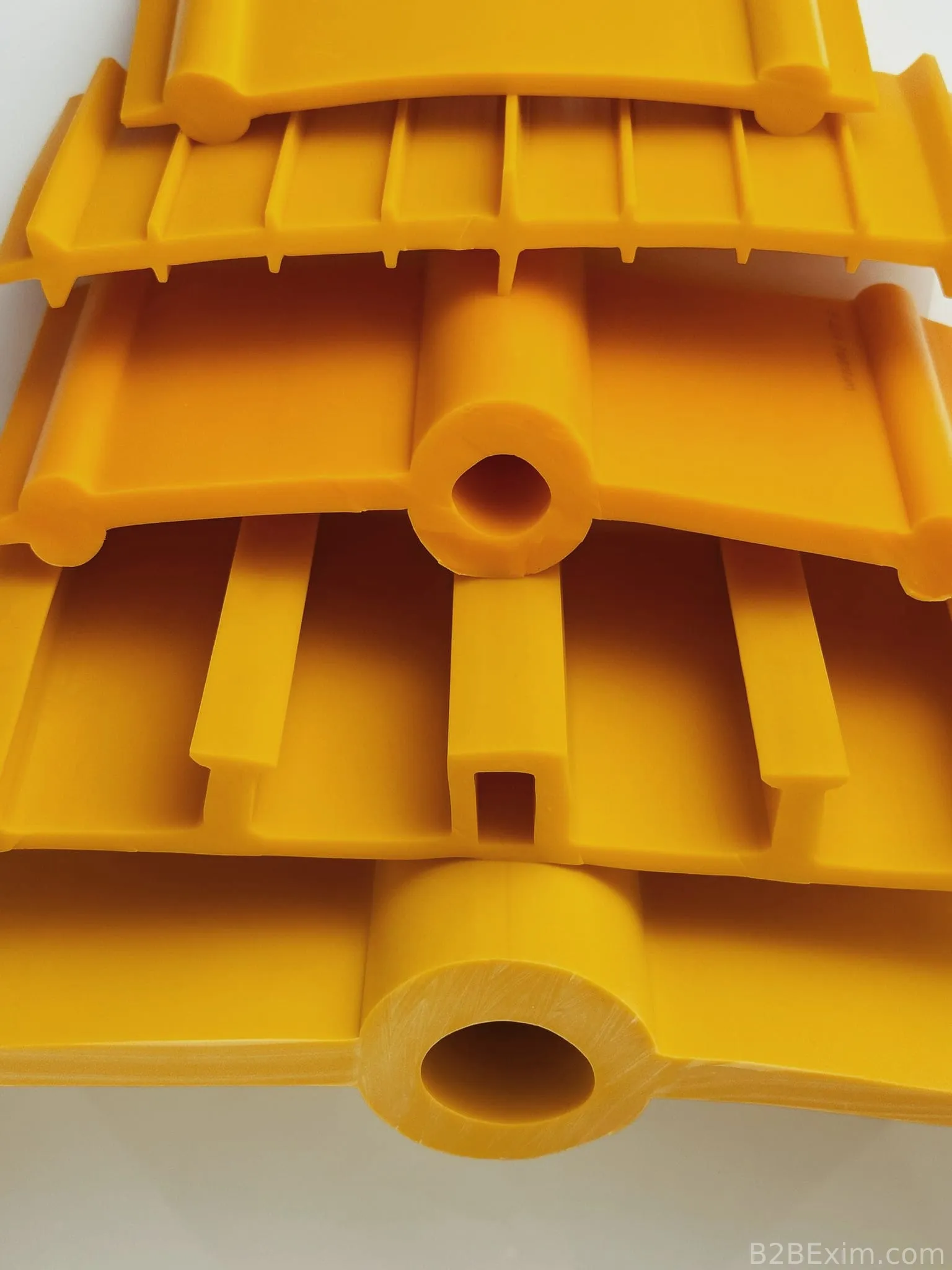

| Type options | 17 different types |
| Test standard | TS 3078-1 & 2 |
| Shore hardness | 80 Shore A ±5 |
| Application area | Reinforced concrete expansion joints, contraction joints and construction joints |
| Ash content by mass | ≥ 5% |
| Service temperature | 15 / 50 °C |
| Manufacturing method | Extrusion forming |
| Tensile strength average | 14 N/mm² |
| Tensile strength minimum | 12 N/mm² |
| Water absorption by mass | ≥ 1.5% |
| Tensile strength tolerance | 10% |
| Elongation at break average | 225% |
| Elongation at break minimum | 200% |
Quotes are provided for bulk purchases and export requests.
