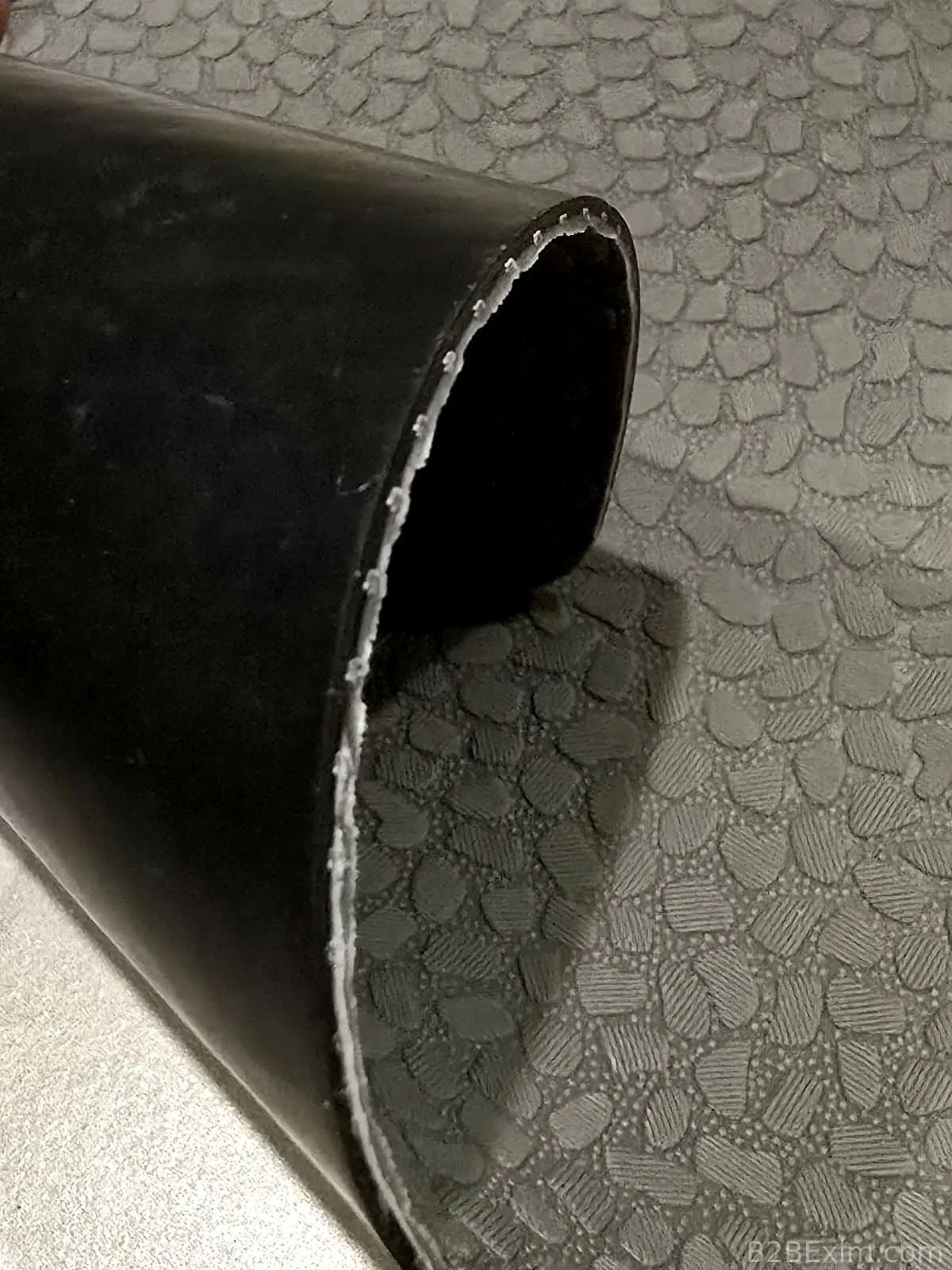

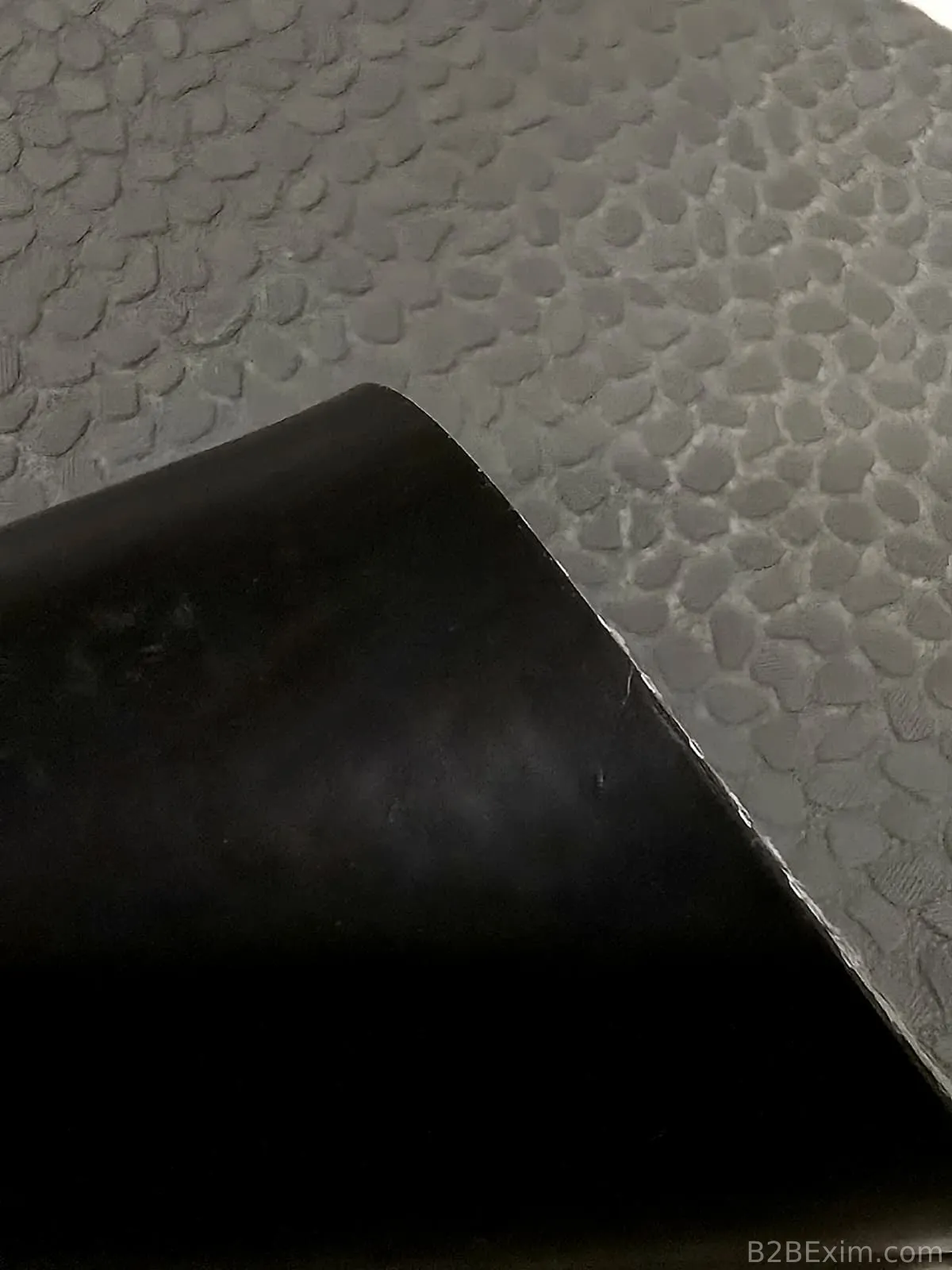

PVC Mesh-Reinforced Geomembrane
PVC mesh-reinforced geomembrane is a flexible waterproofing membrane with polyester mesh reinforcement, designed for use on exposed roofing surfaces. Suitable for flat, pitched, and curved roof applications, this product adapts to various surface types, offering a reliable roofing solution. Thanks to its tear-resistant structure, it is particularly suited for mechanical fastening applications on wind-exposed roofs. Its non-slip surface provides both an aesthetic finish and ensures safe movement on the roof during installation and maintenance. It can also be used to reinforce the internal structure of sandwich panels. Contact us for inquiries regarding this product or similar requirements.
Technical Specifications
| Flatness | <30 mm/10 m |
| Planarity | <10 mm |
| Hard layer | 17 m/s |
| Soft layer | 25 m/s |
| Construction | Polyester mesh-reinforced flexible PVC |
| Product type | PVC mesh-reinforced geomembrane |
| UV resistance | No damage observed after 5000 hours |
| Visual defects | Compliant |
| Watertightness | Full impermeability under 10 kPa |
| Peel resistance | >260 N/5 cm |
| Application area | Exposed roofing surfaces, flat roofs, pitched roofs, curved roofs, sandwich panel inner structure |
| Cold flexibility | <-25°C |
| Surface property | Non-slip surface |
| Tensile strength | ≥1100 / ≥1000 |
| Thickness options | 1.00 mm, 1.20 mm, 1.50 mm, 1.80 mm, 2.00 mm |
| Vapour resistance | 21000 |
| Mass per unit area | 1.80 kg/m² |
| Elongation at break | ≥18 / 20% |
| Fire classification | Class E |
| Impact resistance A | >500 mm |
| Impact resistance B | >2000 mm |
| Reference thickness | 1.50 mm |
| Thickness tolerance | -5 / +10% |
| Roof fire performance | Broof(t1), Broof(t2), Broof(t3) |
| Seam tensile strength | >1000 N/5 cm |
| Static load resistance | >20 kg |
| Mass per unit area tolerance | -5 / +10% |
Quotes are provided for bulk purchases and export requests.
