Construction & Building•Roofing & Facade Systems

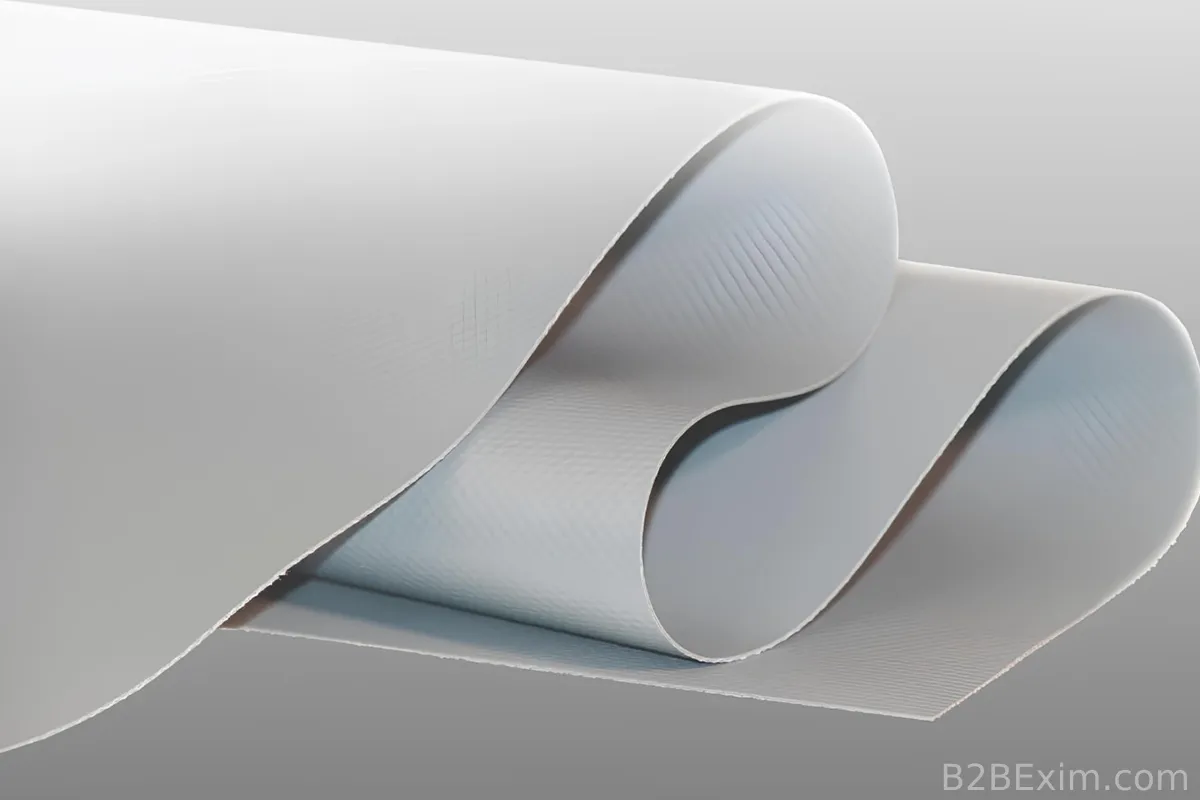

TPO Geomembrane
TPO geomembrane is a modern roofing membrane material based on thermoplastic polyolefin, used in roofing applications requiring waterproofing. Its hot-air weldability provides a reliable solution at seam joints, making it a preferred choice for long-term durability. Its eco-friendly composition and heat-reflective properties contribute to energy efficiency. It stands out as a reliable waterproofing solution for sun-exposed roofs, high-traffic areas, and projects demanding superior resistance. Contact us for inquiries related to this product or similar requirements.
Technical Specifications
| Product type | TPO geomembrane |
| Raw material | Thermoplastic polyolefin |
| Watertightness | Absolute under 60 kPa |
| Hail resistance | ≥30 m/s |
| Peel resistance | ≥58 N/cm |
| Root resistance | Pass |
| Tear resistance | 450/400 N |
| Cold flexibility | ≤-40°C |
| Tensile strength | 16/15 N/mm² |
| Impact resistance | ≥1800 mm |
| Thickness options | 1.00 mm, 1.20 mm, 1.50 mm, 1.80 mm, 2.00 mm |
| Application method | Hot air welding |
| Mass per unit area | 1.27 kg/m² |
| Standard thickness | 1.20 mm |
| Elongation at break | 700/700% |
| Fire classification | Class F |
| Thickness tolerance | -/+10% |
| Wind load resistance | ≥5000 Pa in mechanically fastened system |
| Dimensional stability | ≤0.5% |
| Joint tensile strength | Pass |
| Static load resistance | ≥25 kg |
| Artificial UV resistance | 5000 hours, no surface damage and no significant change in cold flexibility |
| Water vapour permeability | 90,000 |
| Mass per unit area tolerance | -/+10% |
| Algae and microorganism resistance | Level 2, pass |
| Change in tensile strength after heat ageing | -5% |
| Change in elongation at break after heat ageing | -5% |
Quotes are provided for bulk purchases and export requests.
