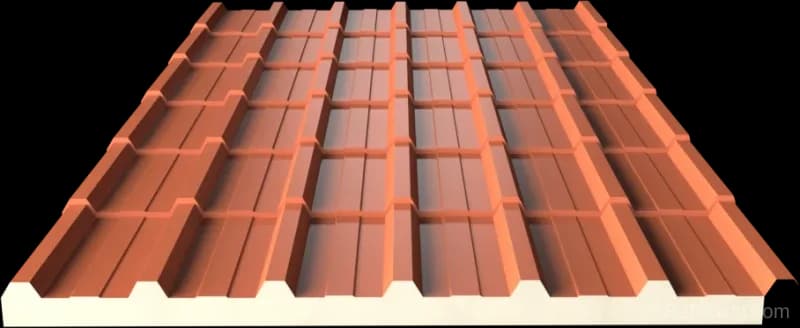

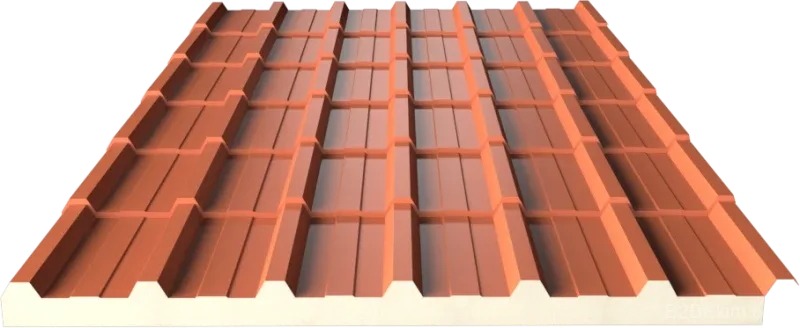

Tile Pattern Roof Panel
Tile-pattern roof panel is a roofing solution that combines the traditional tile appearance with modern insulation performance. With its wide dimension options and lightweight structure, it is an ideal aesthetic roofing material for residential, villa, warehouse, and commercial buildings. It combines both visual quality and durability in modern architecture. Contact us for technical details and price quotation.
Technical Specifications
| Top Layer | Painted galvanized sheet |
| Corrugation | 7 |
| Bottom Layer | Painted galvanized sheet |
| Maximum Length | 15 meters |
| Minimum Length | 2 meters |
| Effective Width | 1000 mm |
| Panel Thickness | 40 - 150 mm range options |
| Sheet Thickness | 0.30 - 0.70 mm |
| PUR / PIR Density | 38 - 42 kg/m³ |
| Fire Resistance Class | B1 / B2 |
Quotes are provided for bulk purchases and export requests.
