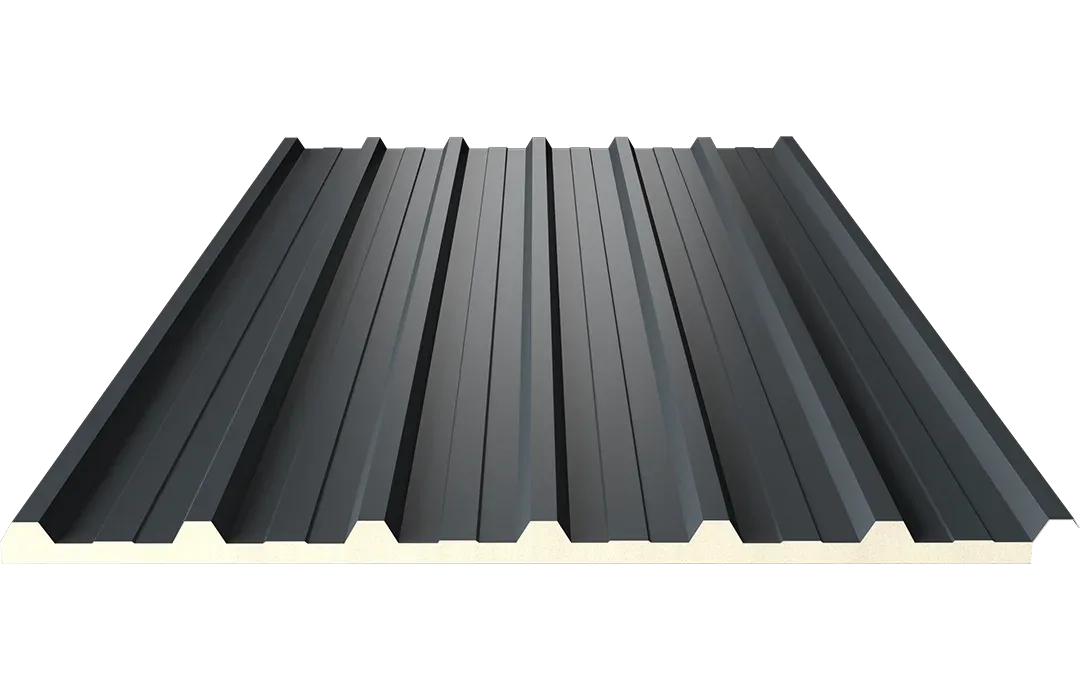

7 HDV Single Roof Panel
A lightweight and economical roofing solution produced with 10 mm and 20 mm insulation thicknesses. Thanks to its low load-bearing feature, it provides easy installation without adding additional load to the structure and offers advantages especially in buildings where structural sensitivities such as earthquakes are important. Suitable for a wide range of applications from residential buildings to industrial facilities. Contact us for technical details and price quotation.
Quotes are provided for bulk purchases and export requests.
Technical Specifications
| Top Layer | Painted galvanized sheet |
| Bottom Layer | Polyethylene film / aluminum foil |
| Maximum Length | 15 meters |
| Minimum Length | 2 meters |
| Effective Width | 1000 mm |
| Sheet Thickness | 0.30 - 0.70 mm |
| Corrugation Count | 7 |
| PUR / PIR Density | 38 - 42 kg/m³ |
| Insulation Thickness | 10 mm - 20 mm |
| Fire Resistance Class | B1 / B2 |
