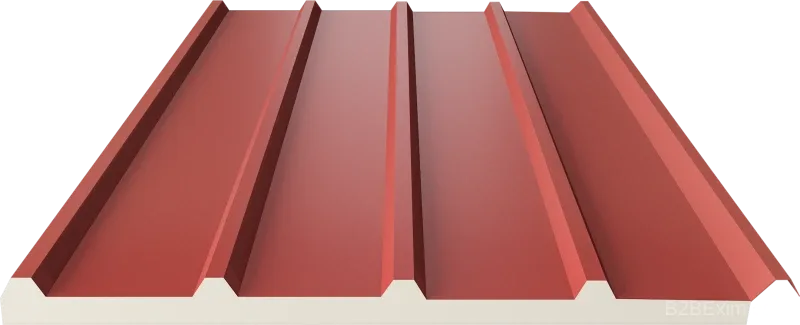

5 HDV Roof Panel
An ideal roofing solution for residential, commercial, and light industrial buildings with its medium load-bearing capacity and strong structural performance. It is preferred as a long-lasting roof element compatible with the building's exterior environment thanks to its insulation performance and aesthetic profile. It saves time with its quick installation advantage. Contact us for technical details and price quotation.
Technical Specifications
| Fill Density | 38 - 42 kg/m³ (PUR/PIR) |
| Maximum Length | 15 meters |
| Minimum Length | 2 meters |
| Effective Width | 1000 mm |
| Sheet Thickness | 0.30 - 0.70 mm |
| Corrugation Count | 5 |
| Top & Bottom Layer | Painted galvanized sheet |
| Insulation Thickness | 40 - 100 mm options |
| Fire Resistance Class | B1 / B2 |
Quotes are provided for bulk purchases and export requests.
