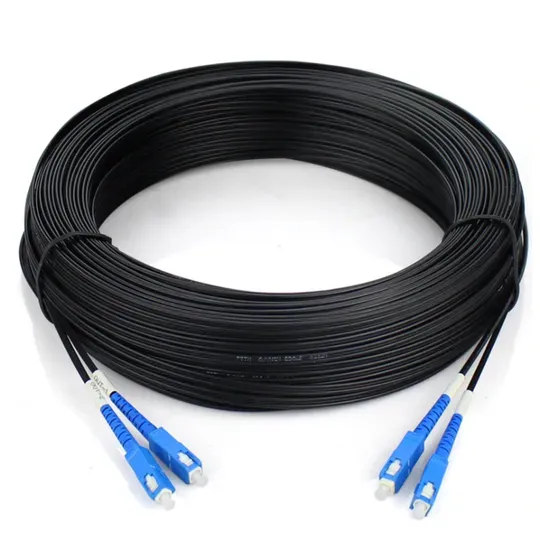

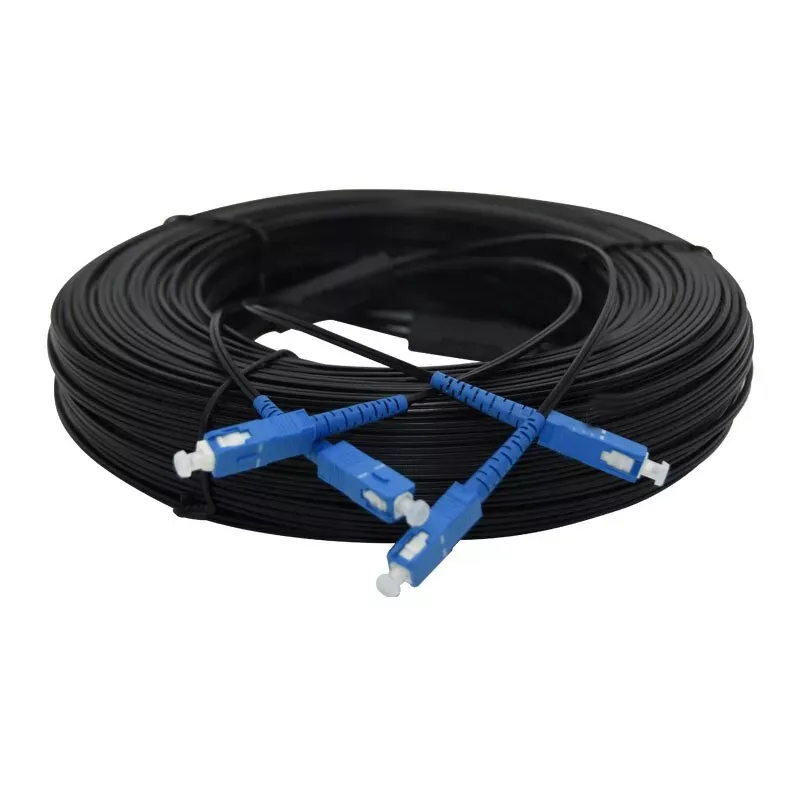

Breakout Patchcord Models
This product group consists of patchcord models that enable multiple fiber optic cables to be carried within a common outer jacket and terminated at different connection points. They can be used in data network backbones, CATV, telecommunications, and GSM base station applications. Available models: OM1 Breakout Patchcord OM2 Breakout Patchcord OM3 Breakout Patchcord OM4 Breakout Patchcord OS1 Breakout Patchcord OS2 Breakout Patchcord Please contact us for technical details and a price quote for the model you are interested in.
Quotes are provided for bulk purchases and export requests.
Technical Specifications
| Jacket | LSZH |
| Standard | IEC 61300-3-4, IEC 61300-3-6 |
| Fiber Marking | Color-coded and numbered |
| APC Return Loss | ≥65 dB |
| Strength Member | Aramid |
| UPC Return Loss | ≥55 dB |
| Number of Fibers | Up to 24 |
| Secondary Buffer | 1900 μm |
| Fiber Grade Options | OM1, OM2, OM3, OM4, OS1, OS2 |
| Multimode Return Loss | ≥35 dB |
| Fan Out Cable Diameter | Approx. 3.00 mm |
| Maximum Insertion Loss | 0.20 dB |
| Central Strength Member | FRP |
| Simplex Subunit Diameter | 2.0 mm |
