OM3 Patchcord Models

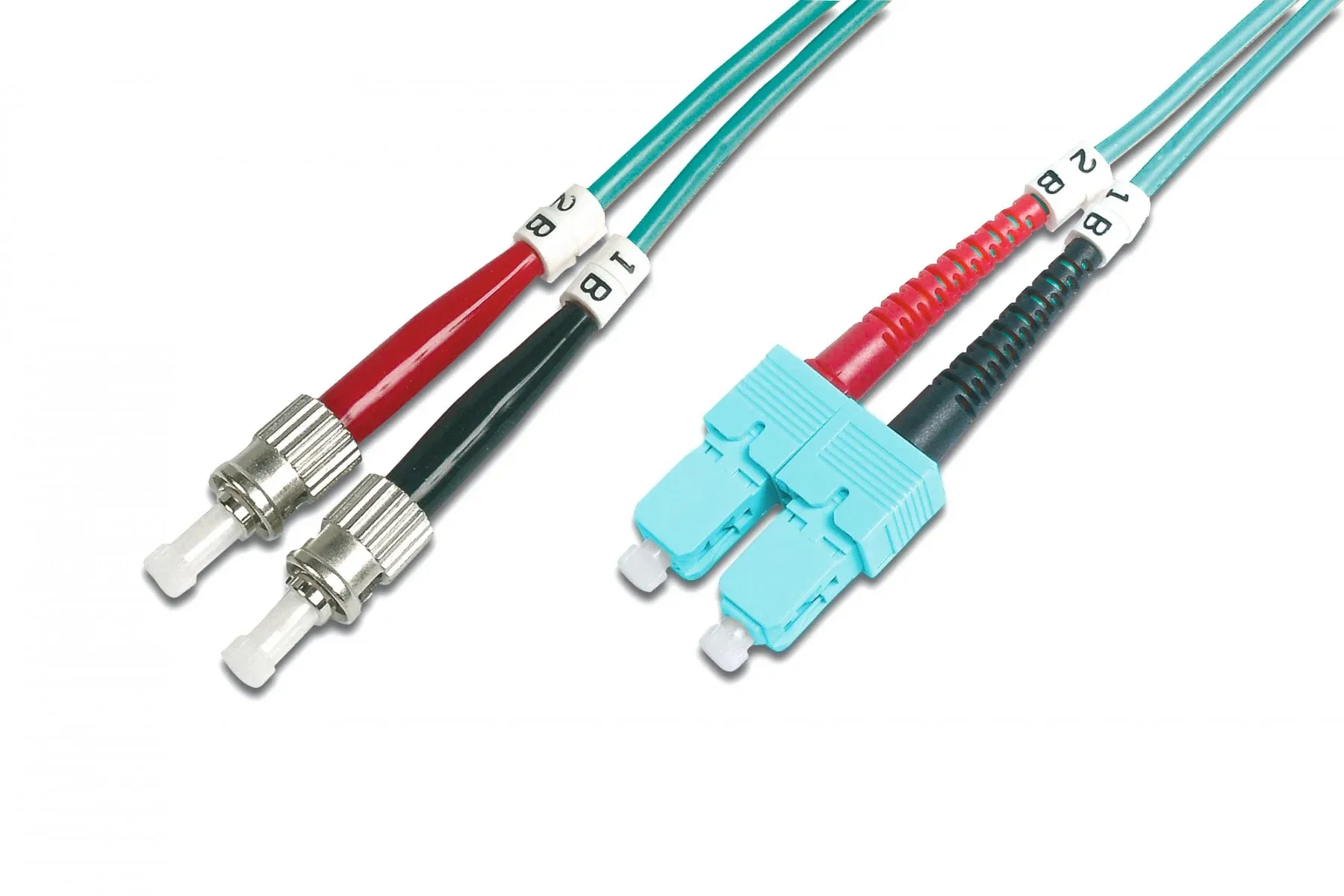

This product group consists of multimode patchcord models that provide data, video, and audio transmission in high-speed local area networks. They can be used in backbone, riser, and horizontal installation cabling. Available models: OM3 Simplex Patchcord OM3 Duplex Patchcord Please contact us for technical details and a price quote for the model you are interested in.
Quotes are provided for bulk purchases and export requests.
Technical Specifications
| Color | Orange |
| Buffer | 900 μm |
| Standard | IEC 61300-3-4, IEC 61300-3-6 |
| Bandwidth | 2000 MHz·km at 850 nm |
| Fiber Size | 50/125 μm |
| Attenuation | 2.6 dB/km at 850 nm, 0.8 dB/km at 1300 nm |
| Fiber Class | OM3 |
| Cable Diameter | 2.00 mm or 3.00 mm |
| Jacket Options | LSZH or PVC |
| UPC Return Loss | ≥35 dB |
| Crush Resistance | 1000 N |
| Connector Options | SC, LC, ST, FC, MU, MTRJ |
| Construction Options | Simplex, duplex |
| Cable Retention Force | 20 lb |
| Operating Temperature | -40 °C to +85 °C |
| Maximum Insertion Loss | 0.20 dB |
