Single Mode Pigtail Models

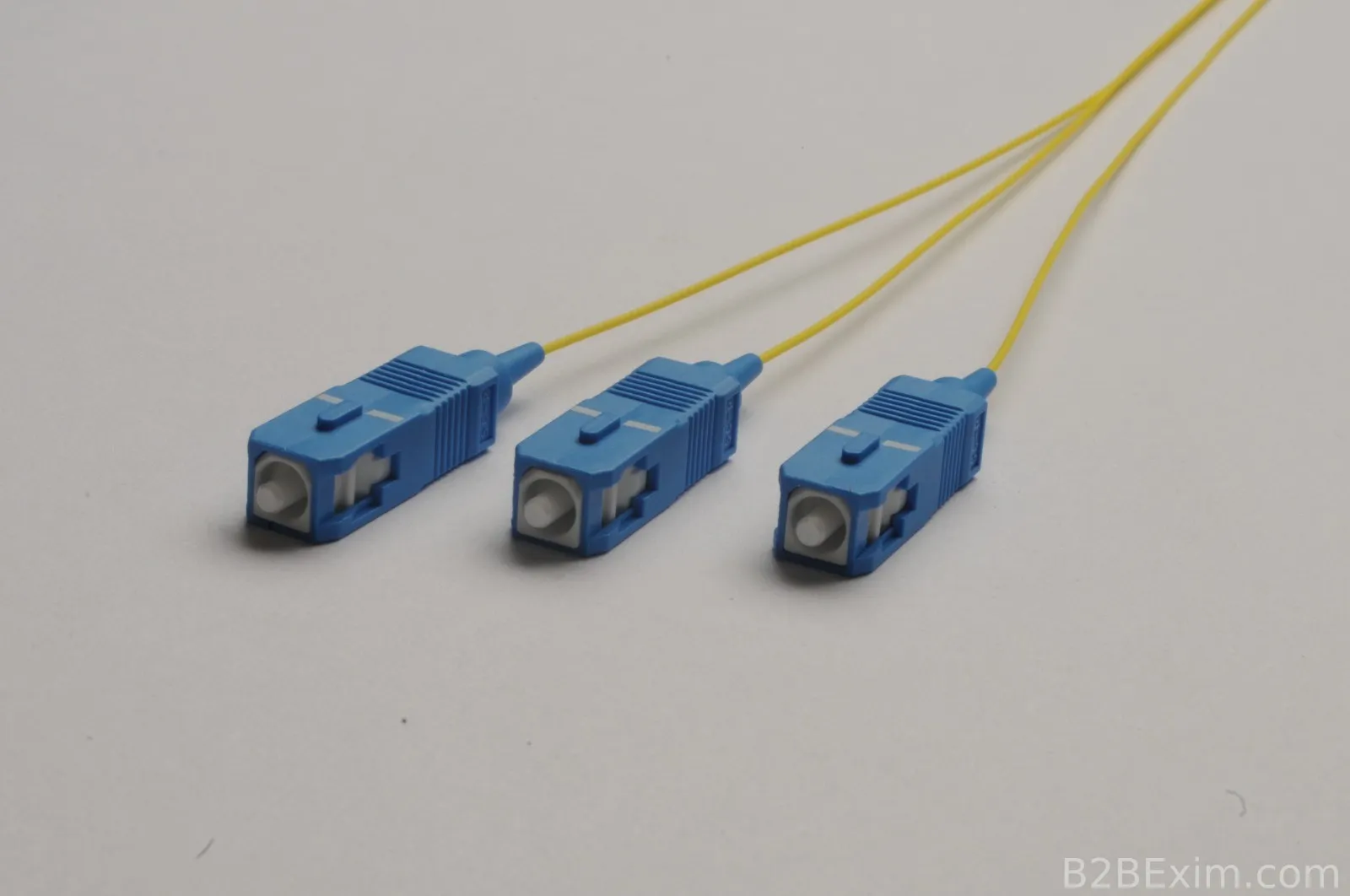

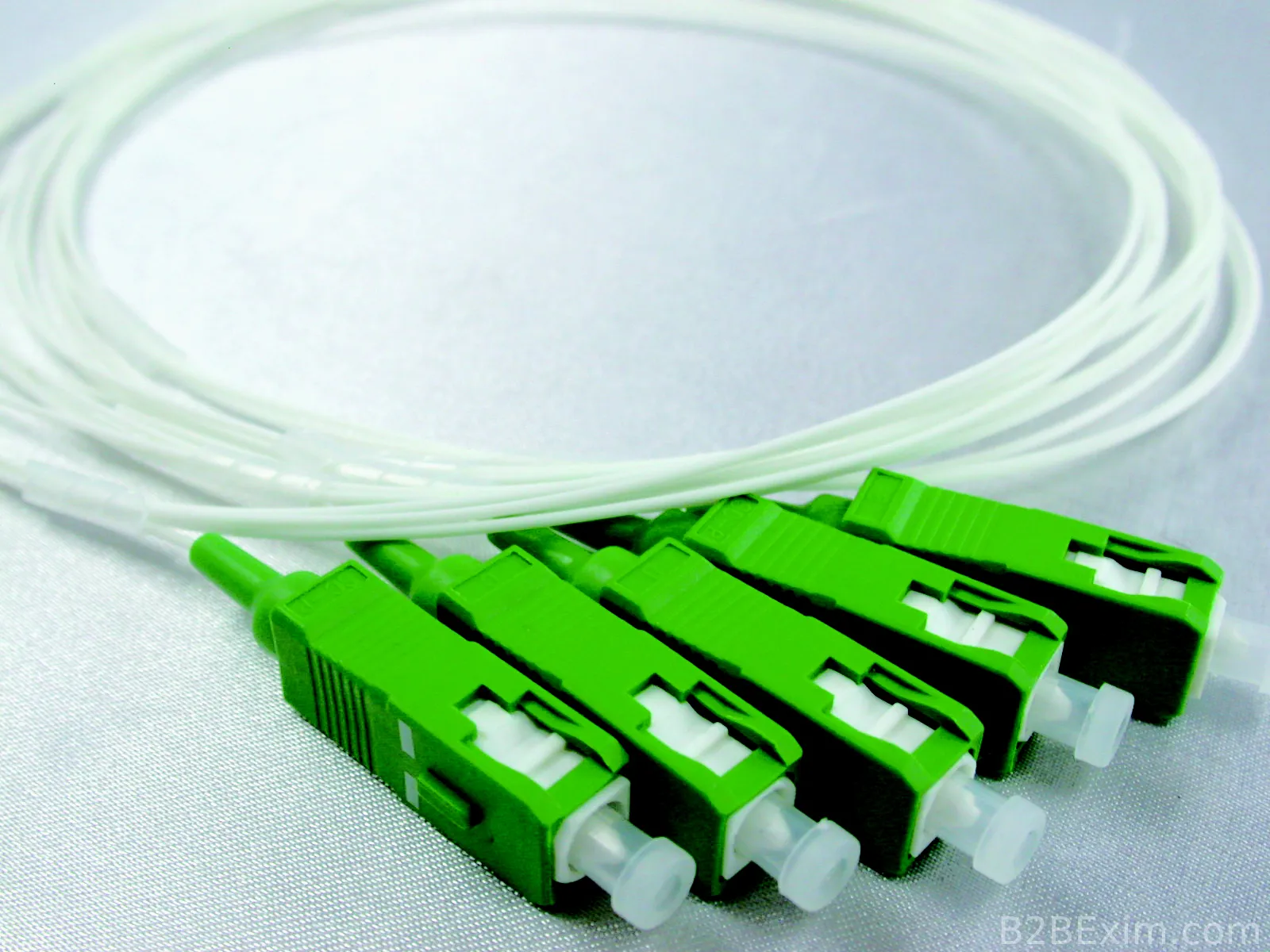

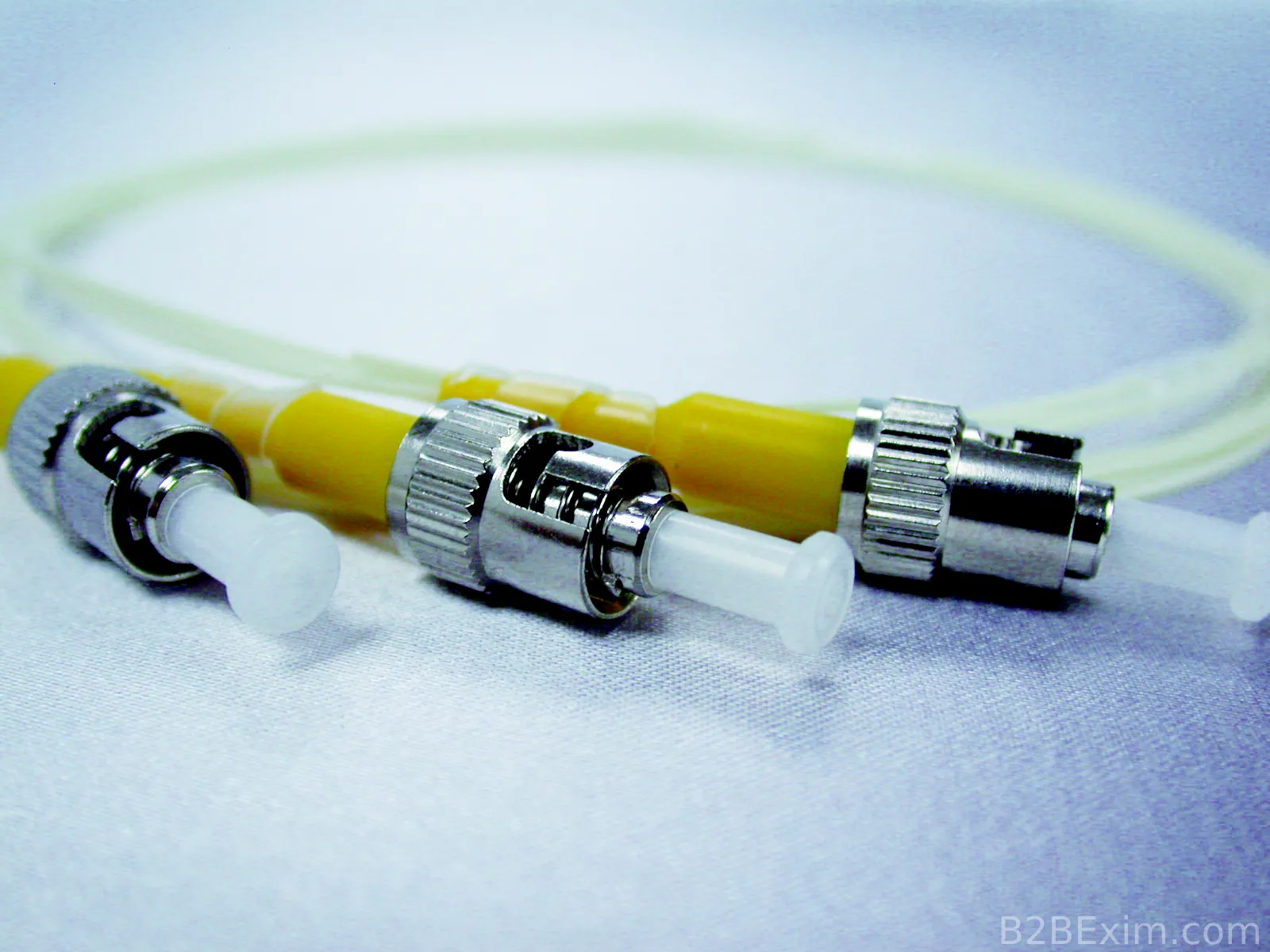

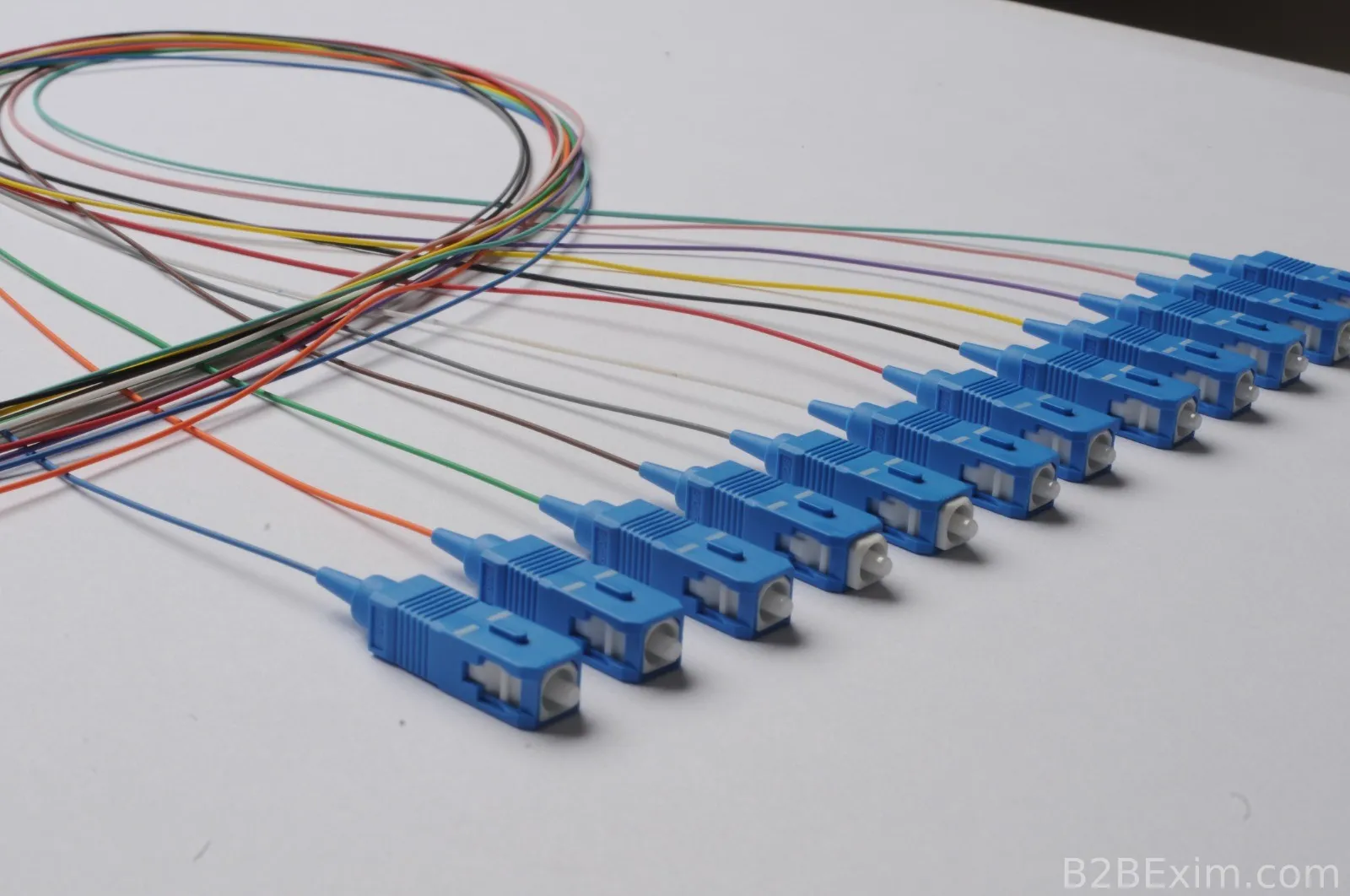

This product group consists of single mode pigtail models used for converting fiber optic cables into connectorized outputs within distribution boxes, splice trays, or patch panels. They can be used with fusion splicing method in telecommunications, CATV, PON, WDM, and data center applications. Available models: SC Pigtail LC Pigtail ST Pigtail FC Pigtail MU Pigtail SC/APC Pigtail LC/APC Pigtail E2000/APC Pigtail Please contact us for technical specifications and a price quote for the model you are interested in.
Quotes are provided for bulk purchases and export requests.
Technical Specifications
| Buffer | 900 μm |
| Standard | IEC 61300-3-4, IEC 61300-3-6 |
| Compliance | RoHS |
| Fiber Size | 9/125 μm |
| Attenuation | 0.38 dB/km at 1310 nm, 0.25 dB/km at 1550 nm |
| Fiber Class | OS1, OS2 |
| Jacket Options | LSZH or PVC |
| APC Return Loss | ≥65 dB |
| UPC Return Loss | ≥55 dB |
| Crush Resistance | 1000 N |
| Connector Options | SC, LC, ST, FC, MU, SC/APC, LC/APC, E2000/APC |
| Cable Retention Force | 20 lb |
| Operating Temperature | -40 °C to +85 °C |
| Maximum Insertion Loss | 0.20 dB |
