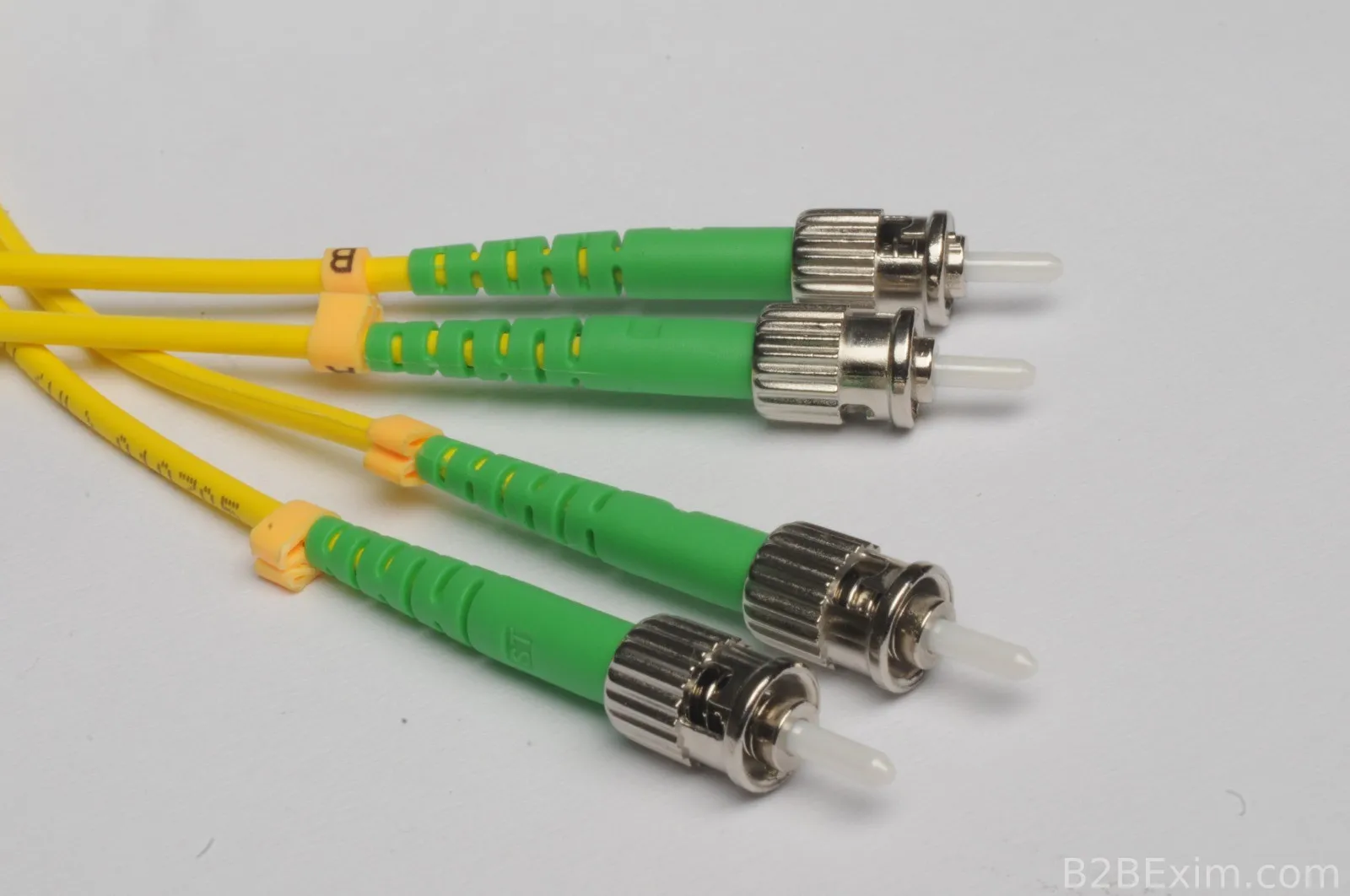

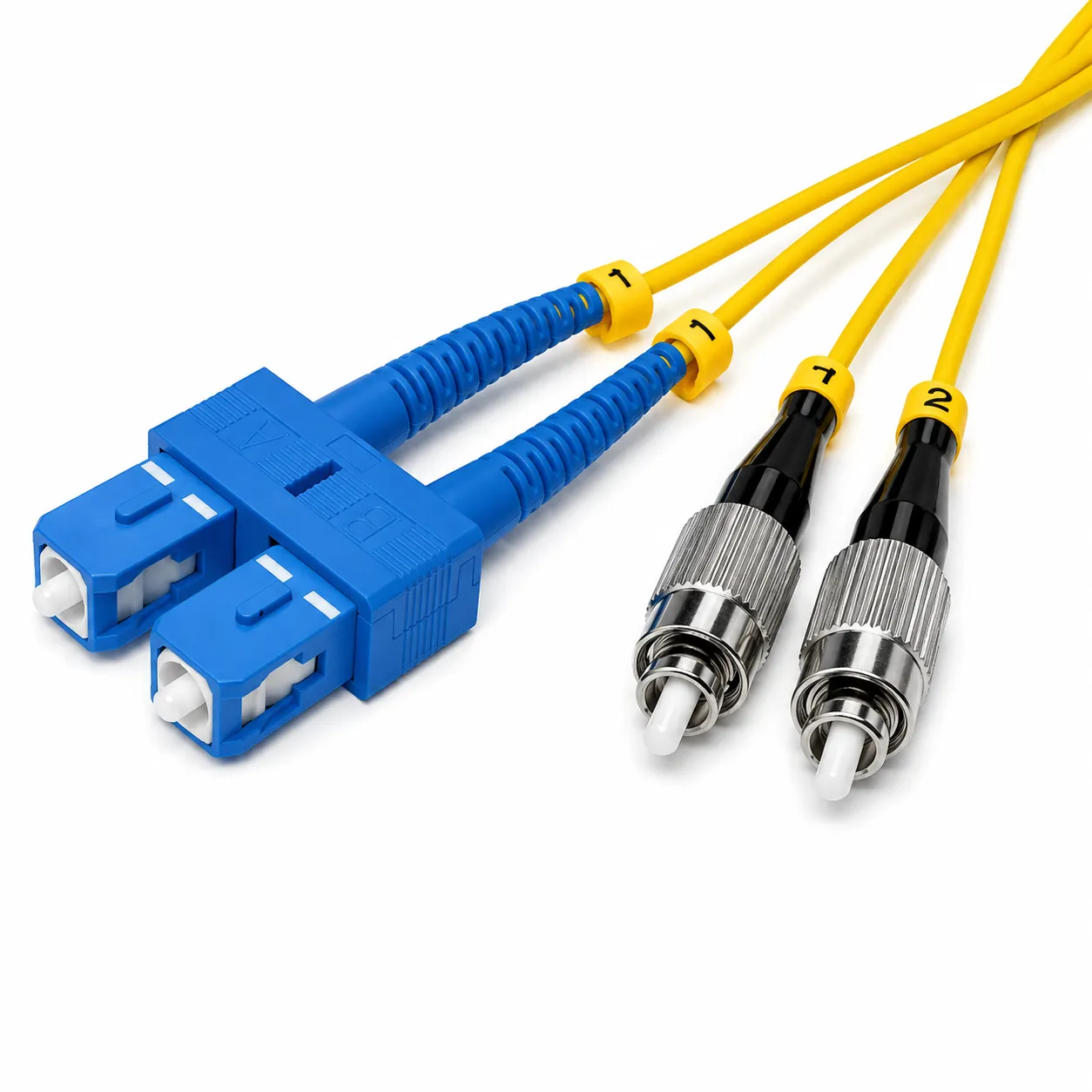

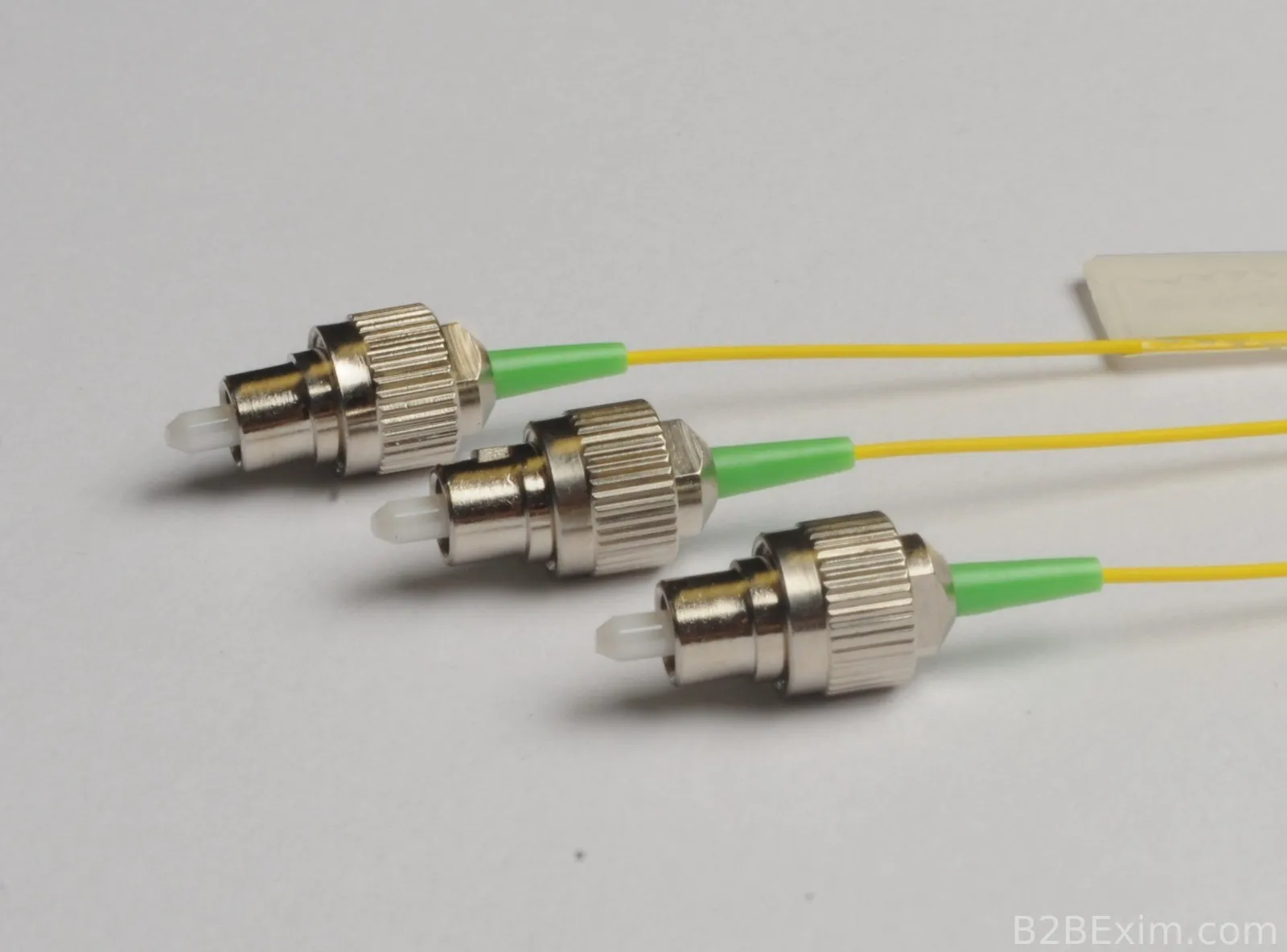

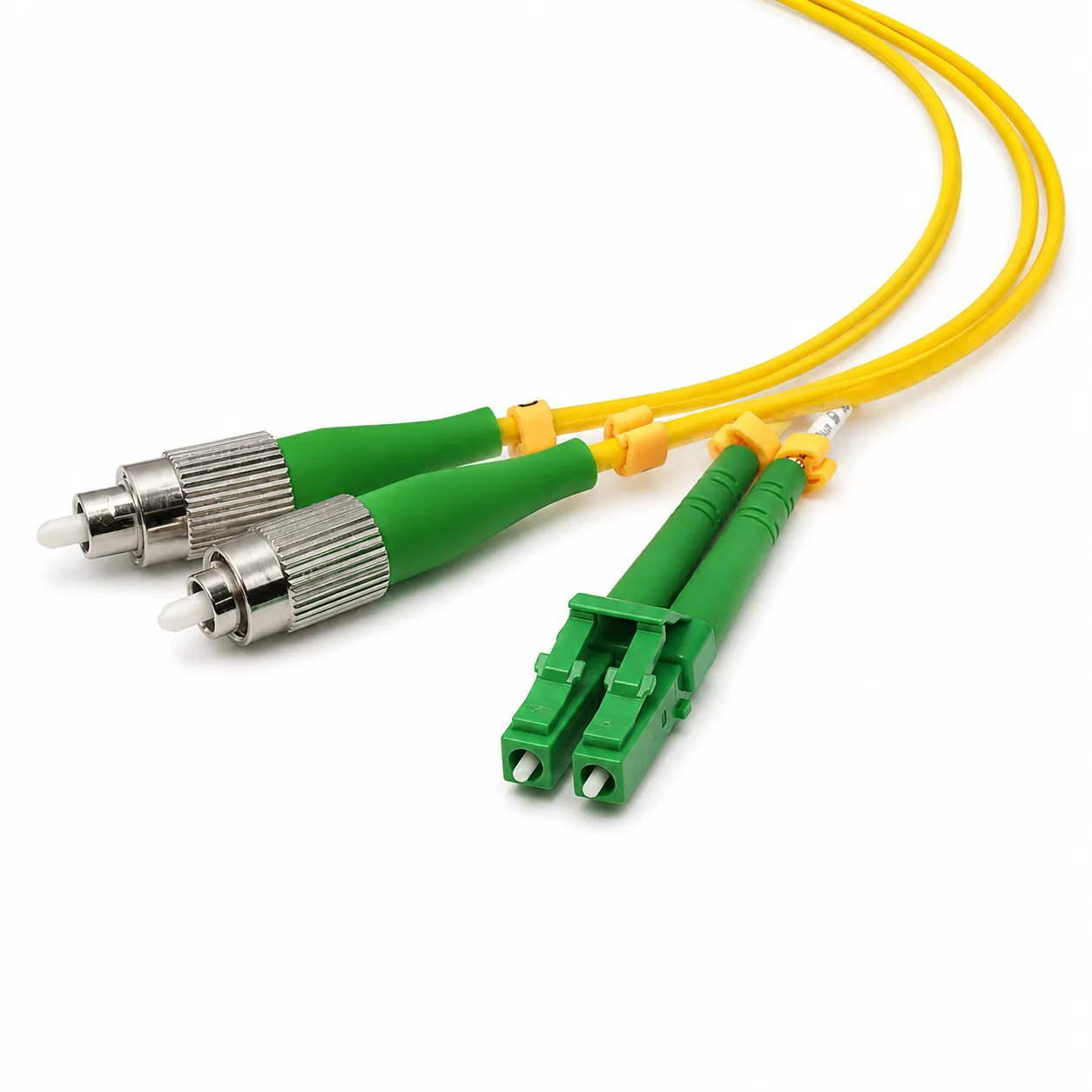

Single Mode Patchcord Models
This product group consists of connection cables that provide single-mode optical signal transmission between fiber optic network devices and distribution panels. Suitable for use in telecommunications, data center, CATV, PON, FTTH, and wide area network applications. Available models: OS1 Simplex Patchcord OS1 Duplex Patchcord OS2 Simplex Patchcord OS2 Duplex Patchcord Please contact us for technical details and a price quote for the model you are interested in.
Quotes are provided for bulk purchases and export requests.
Technical Specifications
| Color | Yellow |
| Buffer | 900 μm |
| Standard | IEC 61300-3-4, IEC 61300-3-6 |
| Fiber Size | 9/125 μm |
| Attenuation | 0.38 dB/km at 1310 nm, 0.20 dB/km at 1550 nm |
| Fiber Class | OS1, OS2 |
| Cable Diameter | 2.00 mm or 3.00 mm |
| Jacket Options | LSZH or PVC |
| APC Return Loss | ≥65 dB |
| UPC Return Loss | ≥55 dB |
| Crush Resistance | 1000 N |
| Connector Options | SC, LC, ST, FC, MU, SC/APC, LC/APC, E2000/APC |
| Construction Options | Simplex, Duplex |
| Cable Retention Force | 20 lb |
| Operating Temperature | -40 °C to +85 °C |
| Maximum Insertion Loss | 0.20 dB |
