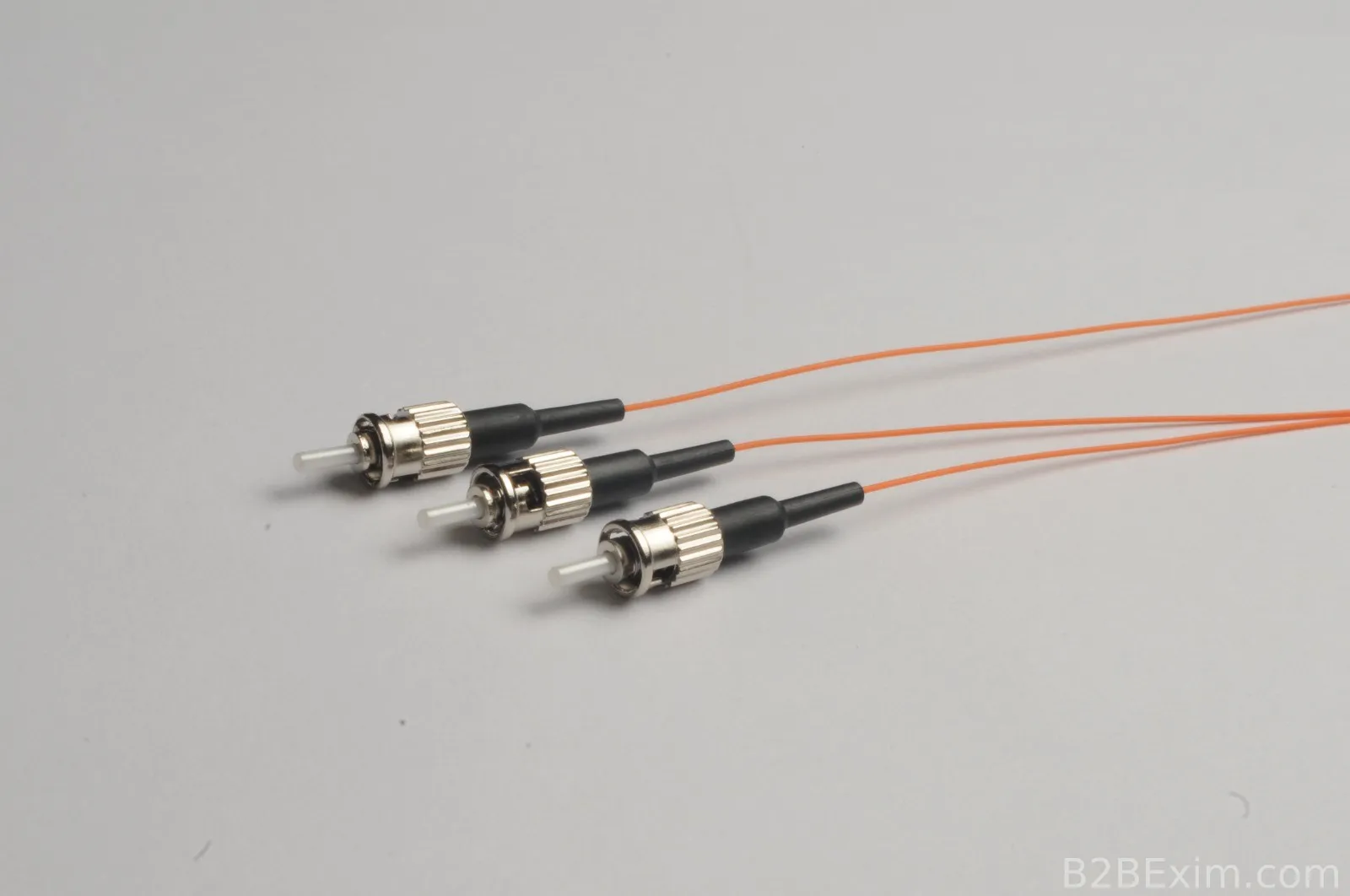

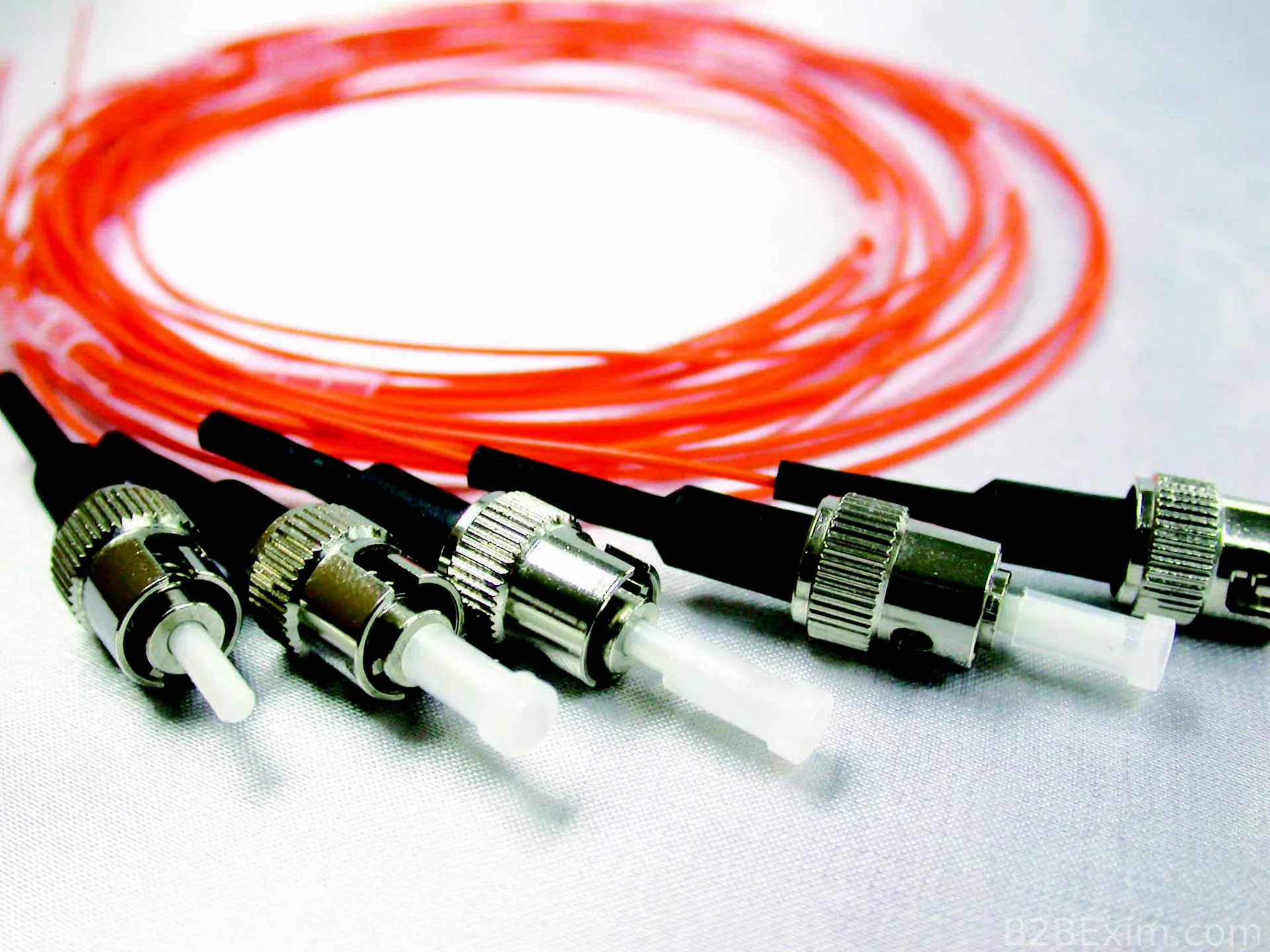

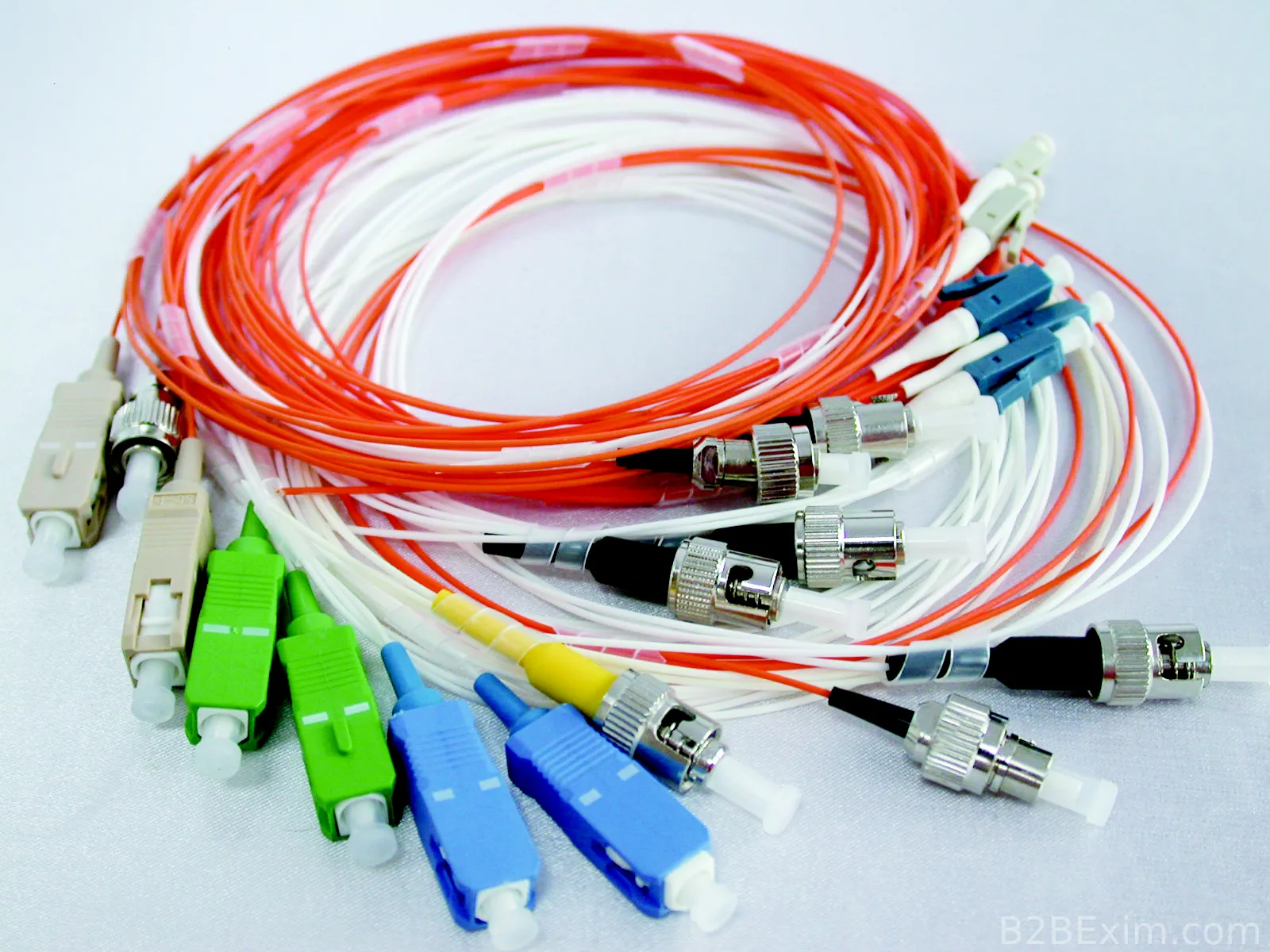

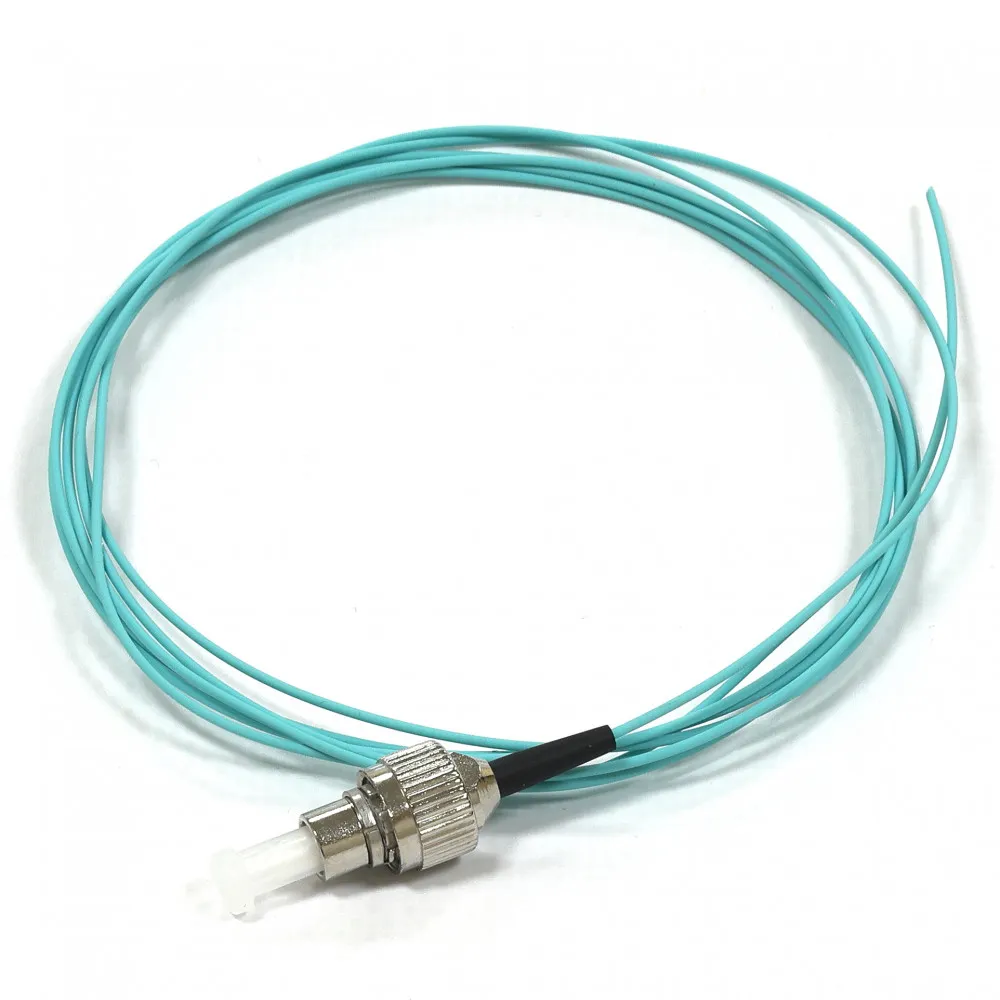

Multimode Pigtail Models
This product group consists of multimode pigtail models used for converting fiber optic cables to connectorized terminations within distribution panels and splice boxes. Suitable for use in telecommunications, data communications, process control, and Ethernet networks. Available models: OM1 Pigtail OM2 Pigtail OM3 Pigtail OM4 Pigtail Please contact us for technical specifications and a price quote for the model you are interested in.
Quotes are provided for bulk purchases and export requests.
Technical Specifications
| Color | Orange |
| Buffer | 900 μm |
| Standard | IEC 61300-3-4, IEC 61300-3-6 |
| Bandwidth | 1500 MHz·km at 850 nm, 2500 MHz·km at 1300 nm |
| Compliance | RoHS |
| Attenuation | 2.6 dB/km at 850 nm, 0.8 dB/km at 1300 nm |
| Fiber Class | OM1, OM2, OM3, OM4 |
| Jacket Options | LSZH or PVC |
| UPC Return Loss | ≥35 dB |
| Crush Resistance | 1000 N |
| Fiber Dimensions | 62.5/125 μm, 50/125 μm |
| Connector Options | SC, LC, ST, FC, MU, MTRJ |
| Cable Retention Force | 20 lb |
| Operating Temperature | -40 °C to +85 °C |
| Maximum Insertion Loss | 0.20 dB |
