Fiber Optic Adapter Models

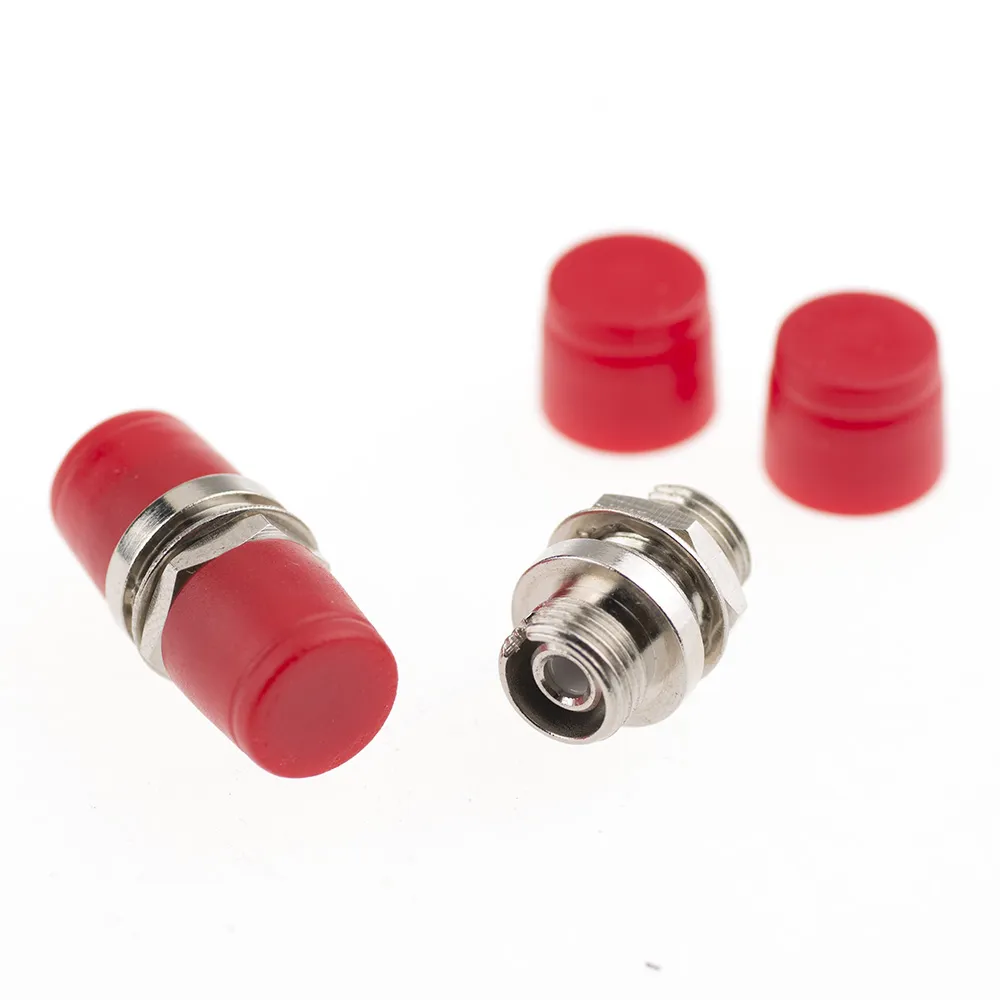

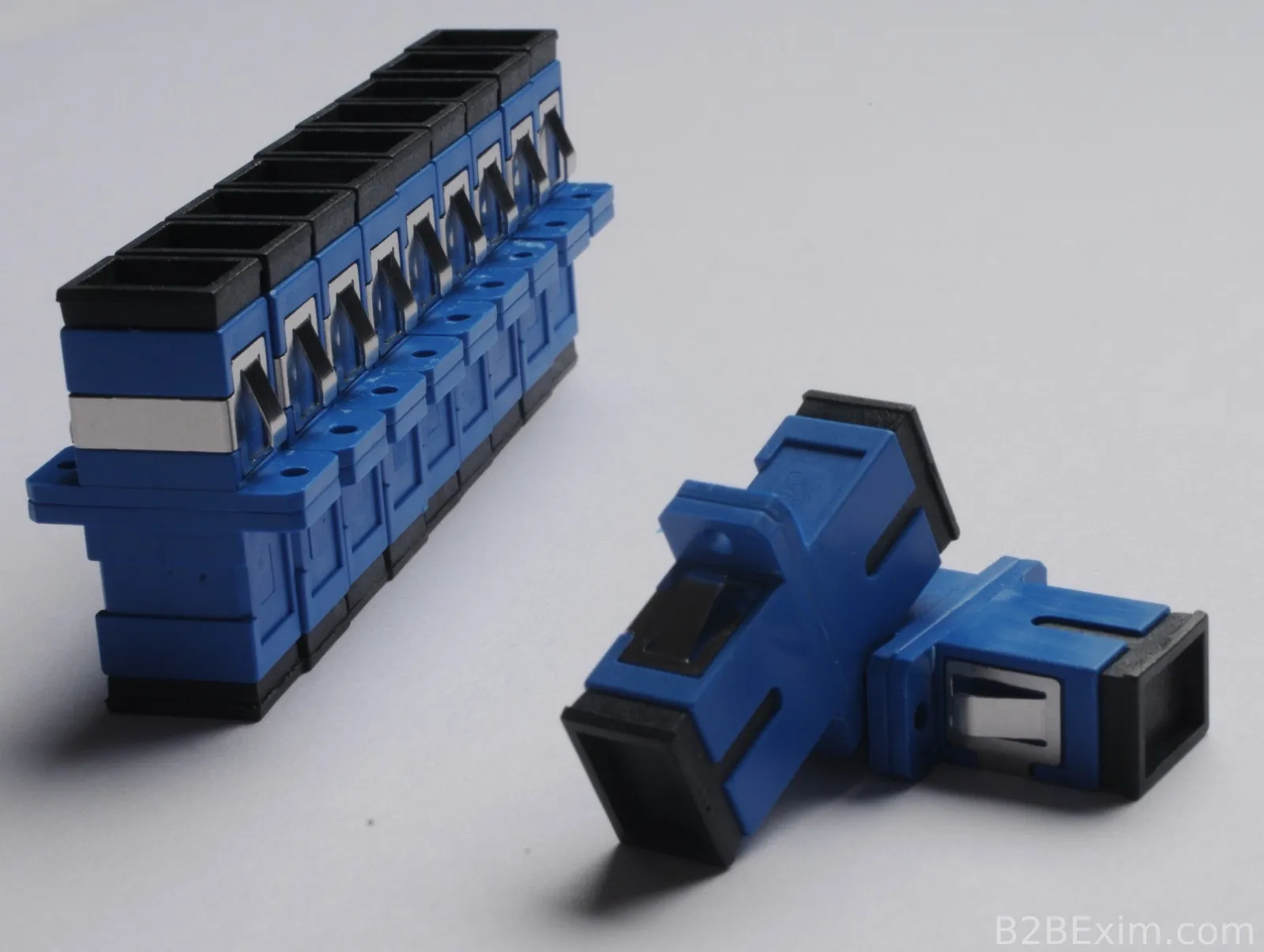

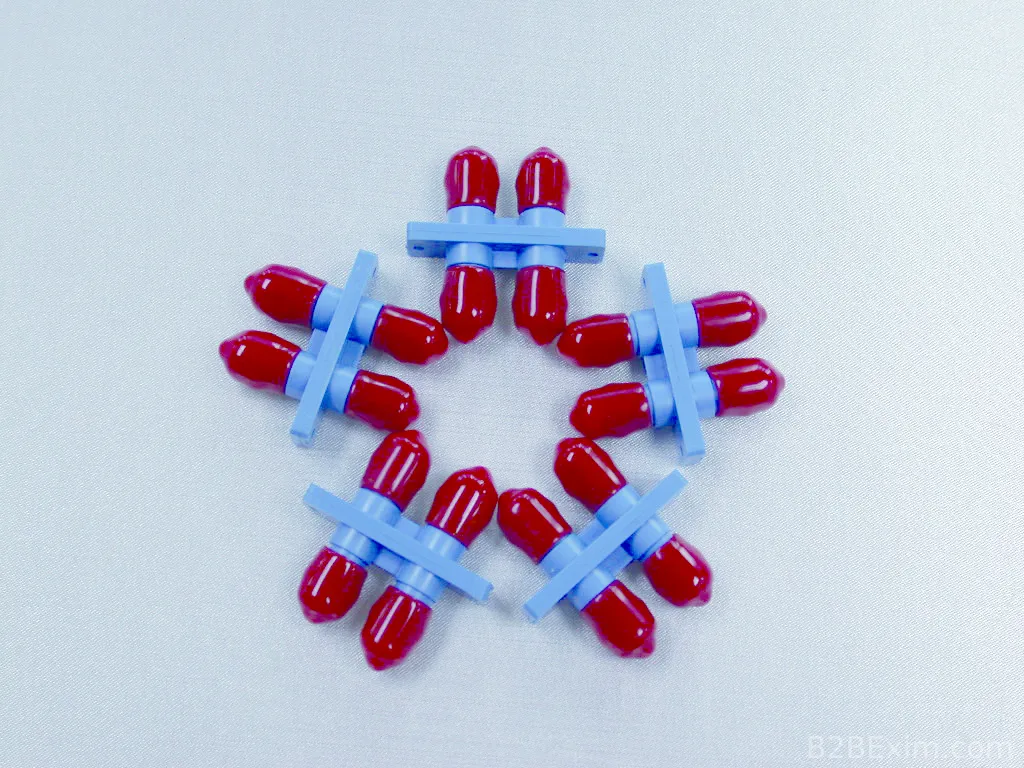

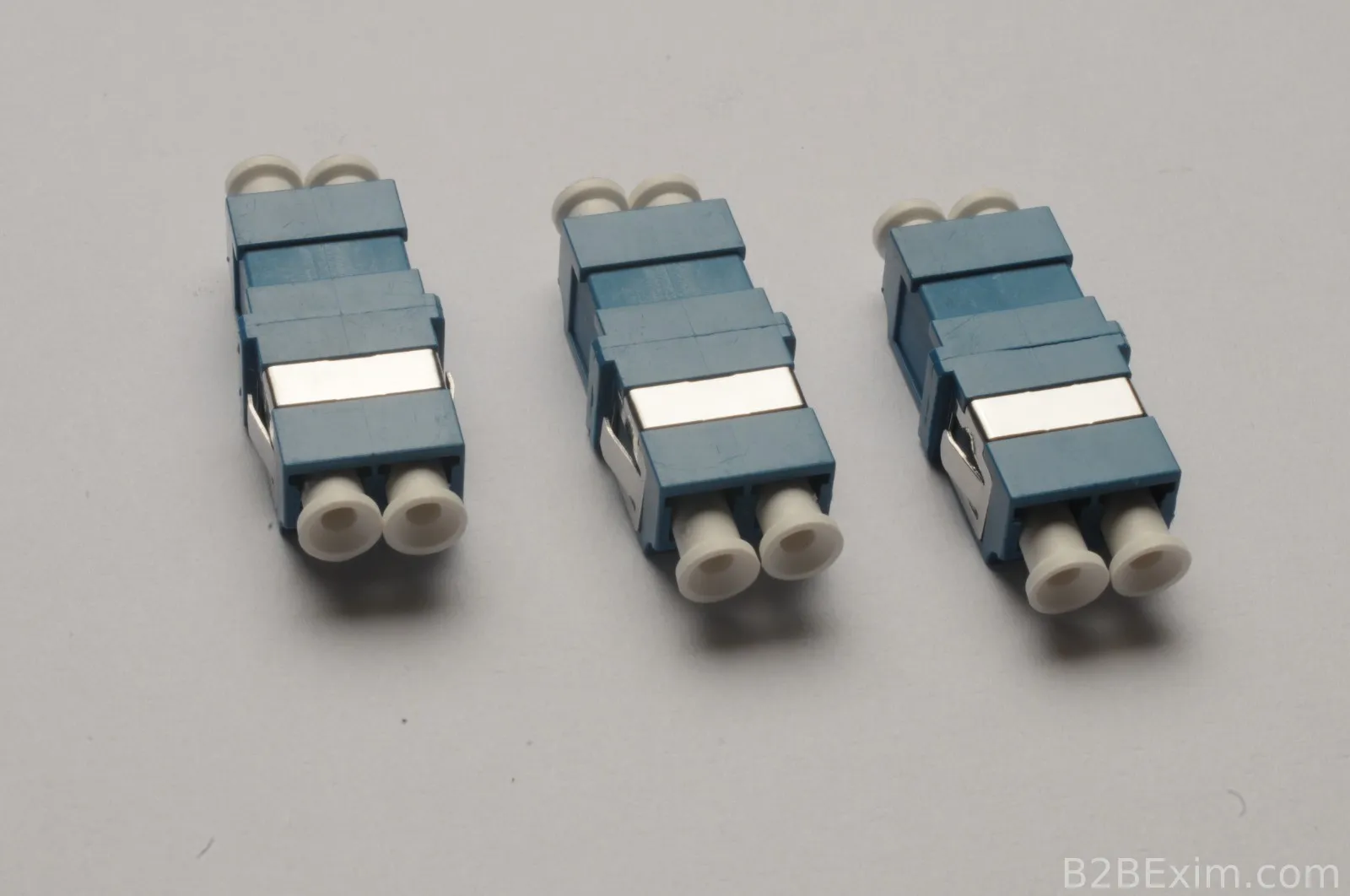

This product group consists of adapter models that ensure mutual alignment of fiber optic connectors and establish an optical connection between two cables. Suitable for use in telecommunications, CATV, FTTH, local area network (LAN), wide area network (WAN), and data processing systems. Available models: SC Adapter LC Adapter FC Adapter ST Adapter Please contact us for technical details and a price quote for the model you are interested in.
Quotes are provided for bulk purchases and export requests.
Technical Specifications
| Compliance | Telcordia, TIA/EIA, IEC, RoHS, REACH |
| Body Options | Metal or plastic |
| Flange Options | Flanged or flangeless |
| Adapter Options | SC, LC, FC, ST |
| Multimode Sleeve | Phosphor bronze or ceramic |
| Mating Durability | 500 matings |
| Single Mode Sleeve | Ceramic |
| Temperature Cycling | ΔIL <0.2 dB, ΔRL <5 dB |
| Vibration Resistance | ΔIL <0.1 dB, ΔRL <5 dB |
| Cable Retention Force | >15 lb |
| Operating Temperature | -40 °C to +85 °C |
| Sleeve Retention Force | 2–5.9 N |
| Typical Insertion Loss | 0.20 dB |
